SFK62-32 by Couplamatic | Grip Crimp 6GC Series Coupling | 2" Split Flange Size | Code 62 | Complete Kit

SFK62-32 by Couplamatic | Grip Crimp 6GC Series Coupling | 2" Split Flange Size | Code 62 | Complete Kit

Sale price$74.66
Buy more, save moreDiscounts applied in cart/checkout.
Split Flange Kit — Complete

SFK62 Split Flange Kit — Code 62 Split Flange, Complete Kit

SFK62 is the Code 62 Split Flange, Complete Kit configuration of the Split Flange Kit system, terminating split flange connections.

1

What are the main product features?
  • The 6GC Series Six Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market.
  • Check crimp O.D. carefully
  • Trivalent Zinc Plating
  • Complete kit — flange halves, bolts and O-ring supplied together.
  • Everything needed for one connection — no separate hardware to source.
  • Matched to the flange code — order the kit that matches the flange head on the coupling.
2

Which sizes are available?

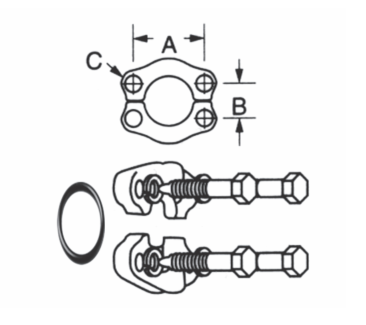

Part NumberComplete Kit Part NumberO-Ring Flange Size A Inches B Inches C Inches
SFK62-12 12252 3/4" 2.00" 0.94" 13/32"
SFK62-16 16252 1" 2.25" 1.09" 15/32"
SFK62-20 20252 1-1/4" 2.63" 1.25" 17/32"
SFK62-24 24252 1-1/2" 3.12" 1.44" 21/32"
SFK62-32 32252 2" 3.81" 1.75" 25/32"

Additional Product Data:

Series:
  • 6GC Series
Shape:

Straight

Ends Configuration:
  • 2in Code 62 Flange

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
