SFK62-20 by Couplamatic | GW Series Coupling | 1-1/4" Split Flange Size | Code 62 | Complete Kit

SFK62-20 by Couplamatic | GW Series Coupling | 1-1/4" Split Flange Size | Code 62 | Complete Kit

Sale price$44.23

Couplamatic Systems Inc.
GW Series - Code 62 Split Flange Kits
Buy More, Save More!
Quantity Price Each
10–39 $41.58
40–79 $37.60
80+ $33.17
Discounts applied in cart/checkout.

Product Data:

Series:
  • GW Series
Shape:

Straight

Ends Configuration:
  • 1-1/4in Code 62 Flange
Description:
  • NO SKIVE REQUIRED.
  • The GW Series Four Spiral Coupling is compatible with some fixed and virtually all adjustable spiral crimp machines on the market. Check crimp O.D. carefully.
  • Trivalent Zinc Plating

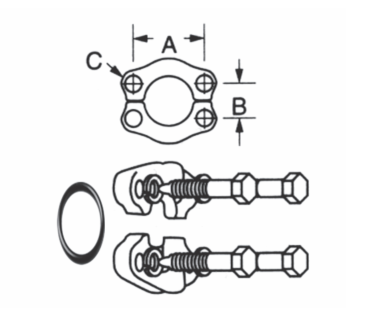

Part NumberComplete Kit Part NumberO-Ring Flange Size A Inches B Inches C Inches
SFK62-12 12252 3/4" 2.00" 0.94" 13/32"
SFK62-16 16252 1" 2.25" 1.09" 15/32"
SFK62-20 20252 1-1/4" 2.63" 1.25" 17/32"

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
