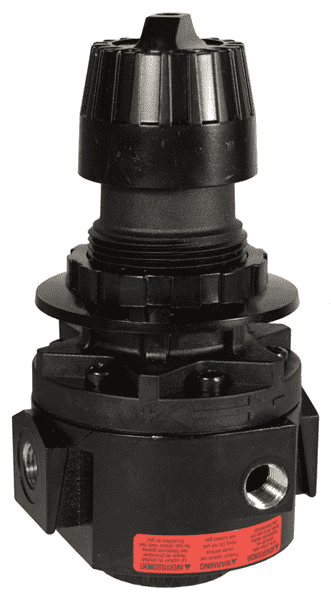

R26-02RH Dixon Valve Wilkerson 1/4" High Pressure Standard Regulator without Gauge - 112 SCFM
Dixon

R26-02RH Dixon Valve Wilkerson 1/4" High Pressure Standard Regulator without Gauge - 112 SCFM

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • 0-250 PSI adjusting range.
  • Self-relieving standard.
  • Non-rising push/pull locking adjustment knob.
  • Panel mount nut standard.
  • Excellent flow characteristics.
  • Can be installed with the adjusting knob in any position.
  • Two 1/4" NPT gauge ports standard on models without gauge, one 1/4" NPT gauge port standard on models with gauge - can be used for additional outlet ports.
  • Models supplied without gauge use a GC240 gauge.
Part Number Size SCFM PSI Min/Max Temp Weight (Lbs.)
With Gauge
R26-02RHG 1/4" 112 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 2.8800
R26-03RHG 3/8" 148 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 2.8400
R26-04RHG 1/2" 185 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 2.7700
Without Gauge
R26-02RH 1/4" 112 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 2.6900
R26-03RH 3/8" 148 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 2.6500
R26-04RH 1/2" 185 300 (20.41 bar) 32 deg. F/ 150 deg. F (0.00 deg. C / 65.56 deg. C) 2.5800

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
