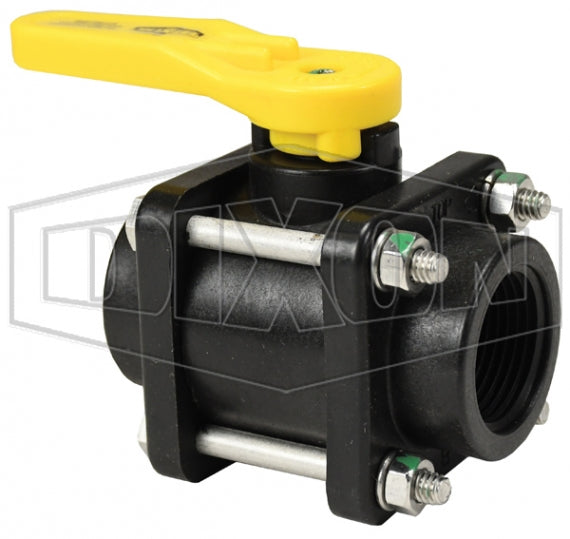

PV200 by Dixon Valve | 4-Bolt Ball Valve | Standard Port | 2" Female NPT x 2" Female NPT | Polypropylene

PV200 by Dixon Valve | 4-Bolt Ball Valve | Standard Port | 2" Female NPT x 2" Female NPT | Polypropylene

Sale price$80.67

Dixon Valve & Coupling
Bolted Ball Valve | Polypropylene

FDA approved material.
Buy More, Save More!
Quantity Price Each
5–19 $75.83
20–59 $68.57
60+ $60.50
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 2in Female NPT
  • 2in Female NPT
  • Some Ends Match
Material(s):
  • Polypropylene
Materials:
  • Chemically-resistant, reinforced polypropylene.
  • PTFE ball seat.
  • EPDM O-ring body seal, FKM O-ring stem seal.
  • 304 stainless steel nuts and bolts.
Specifications:
  • Pressure rating:
    - 1/2" - 3" is rated to 125 PSI at 70°F (21°C)
    - 4" is rated to 90 PSI at 70°F (21°C)
Approvals:
  • FDA approved material.
Part Number Number of Bolts Female NPT x Female NPT Port
PVFP50 4-Bolt 1/2" Full
PVFP75 4-Bolt 3/4" Full
PVFP100 4-Bolt 1" Full
PVFP150 4-Bolt 1-1/2" Full
PV100 4-Bolt 1" Standard
PV200 4-Bolt 2" Standard
PVFP200 6-Bolt 2" Full
PVFP300 6-Bolt 3" Full
PVFP400 8-Bolt 4" Full

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
