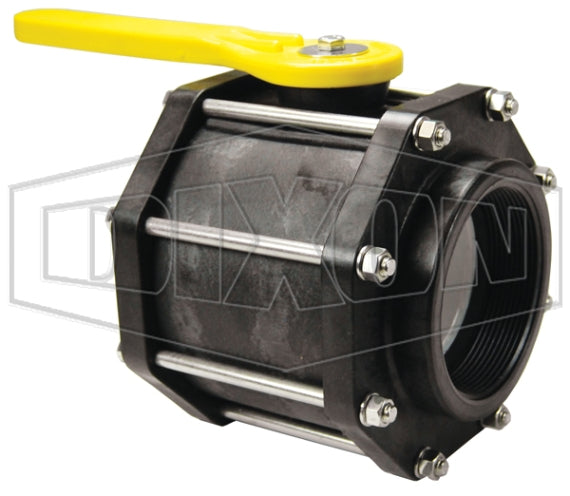

PVFP400 by Dixon Valve | 8-Bolt Ball Valve | Full Port | 4" Female NPT x 4" Female NPT | Polypropylene

PVFP400 by Dixon Valve | 8-Bolt Ball Valve | Full Port | 4" Female NPT x 4" Female NPT | Polypropylene

Sale price$501.04

Dixon Valve & Coupling
Bolted Ball Valve | Polypropylene

FDA approved material.
Buy More, Save More!
Quantity Price Each
5–14 $470.98
15–29 $425.88
30+ $375.78
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 4in Female NPT
  • 4in Female NPT
  • Some Ends Match
Material(s):
  • Polypropylene
Materials:
  • Chemically-resistant, reinforced polypropylene.
  • PTFE ball seat.
  • EPDM O-ring body seal, FKM O-ring stem seal.
  • 304 stainless steel nuts and bolts.
Specifications:
  • Pressure rating:
    - 1/2" - 3" is rated to 125 PSI at 70°F (21°C)
    - 4" is rated to 90 PSI at 70°F (21°C)
Approvals:
  • FDA approved material.
Part Number Number of Bolts Female NPT x Female NPT Port
PVFP50 4-Bolt 1/2" Full
PVFP75 4-Bolt 3/4" Full
PVFP100 4-Bolt 1" Full
PVFP150 4-Bolt 1-1/2" Full
PV100 4-Bolt 1" Standard
PV200 4-Bolt 2" Standard
PVFP200 6-Bolt 2" Full
PVFP300 6-Bolt 3" Full
PVFP400 8-Bolt 4" Full
