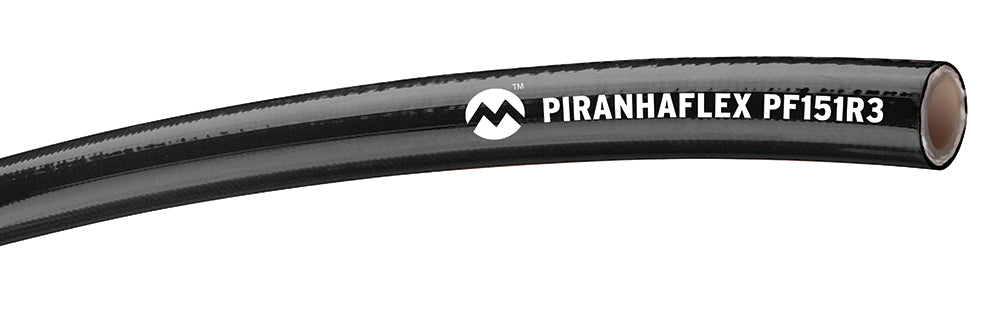

PF151R3-08-250R Alfagomma Piranhaflex™ by Kuriyama | PF151R3 Series | SAE 100R3 | Thermoplastic Hydraulic Hose | 1/2" ID | 0.750" OD | 1000 PSI | 250ft Length
PF151R3-08-250R Alfagomma Piranhaflex™ by Kuriyama | PF151R3 Series | SAE 100R3 | Thermoplastic Hydraulic Hose | 1/2" ID | 0.750" OD | 1000 PSI | 250ft Length

PF151R3-08-250R Alfagomma Piranhaflex™ by Kuriyama | PF151R3 Series | SAE 100R3 | Thermoplastic Hydraulic Hose | 1/2" ID | 0.750" OD | 1000 PSI | 250ft Length

Sale price$1,061.34

Kuriyama of America Inc.
Alfagomma Piranhaflex | PF151R3 Series | SAE 100R3 | Thermoplastic Hydraulic Hose

Made in the USA.

For Lower pressure hydraulic applications: industrial equipment and vehicles (construction, agriculture, material handling, etc.)


Package Quantity: 250 Feet

Buy More, Save More!
Quantity Price Each
4–7 $997.66
8–14 $955.21
15+ $849.07
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
  • Piranhaflex
Series:
  • PF151R3 Series
Color(s):
  • Black
Application: Lower pressure hydraulic applications.
Industrial equipment and vehicles (construction, agriculture, material handling, etc.)		 SAE Rating: Meets or exceeds SAE 100R3

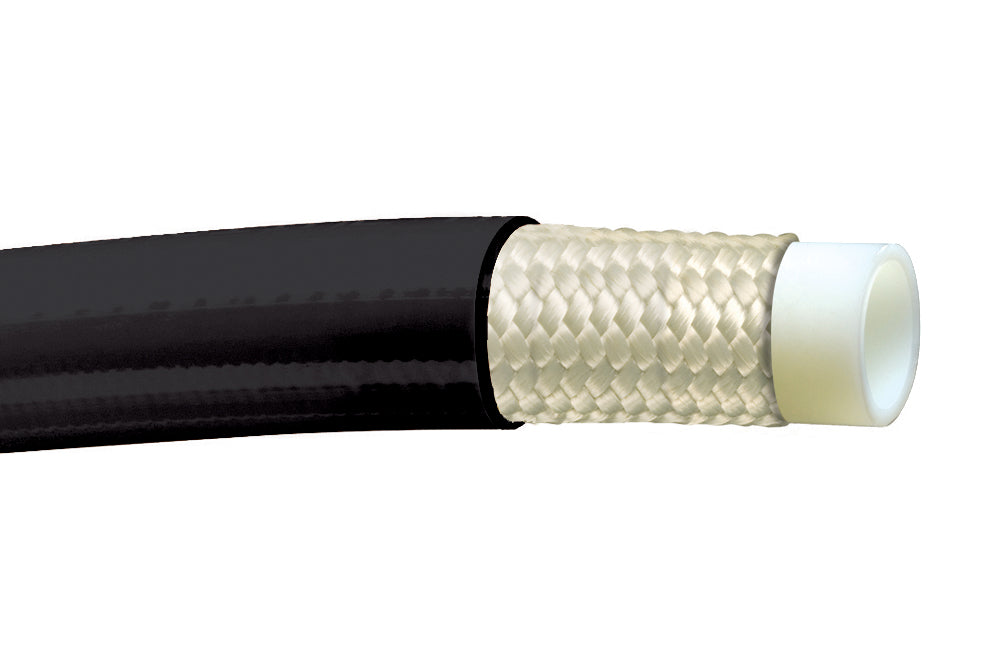

Other Ratings: - Tube: Nylon
Reinforcement: Braided high tensile strength fibers Cover: Pin pricked, abrasion resistant, conductive polyurethane
Service Temperature Range: -40°F (-40°C) to +200°F (+93°C) for petroleum based hydraulic fluids
Other Features:
  • Abrasion Resistant - Polyurethane cover outlasts rubber versions in applications where the hose rubs against abrasive surfaces.
  • Lightweight - Approximately 45% lighter weight than similar rubber hoses.
  • Pin Pricked Cover - Allows for the escape of gasses, if necessary, eliminating risk of cover blistering.
  • NOTE: Max two pieces per reel, minimum pc. length 50ft.
Part Number
By the Foot		 Part Number
250ft Reel		 ID OD Max. Working
Pressure*		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
PF151R3-04 PF151R3-04-250R 1/4" 6.4mm 0.410" 10.4mm 1500 1.50" 38.1mm 0.05 lbs/ft
- PF151R3-05-250R 5/16" 8.1mm 0.520" 13.2mm 1500 1.75" 44.5mm 0.07 lbs/ft
- PF151R3-06-250R 3/8" 9.7mm 0.610" 15.5mm 1250 2.50" 63.5mm 0.10 lbs/ft
- PF151R3-08-250R 1/2" 13.1mm 0.750" 19.1mm 1000 3.00" 76.2mm 0.12 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
