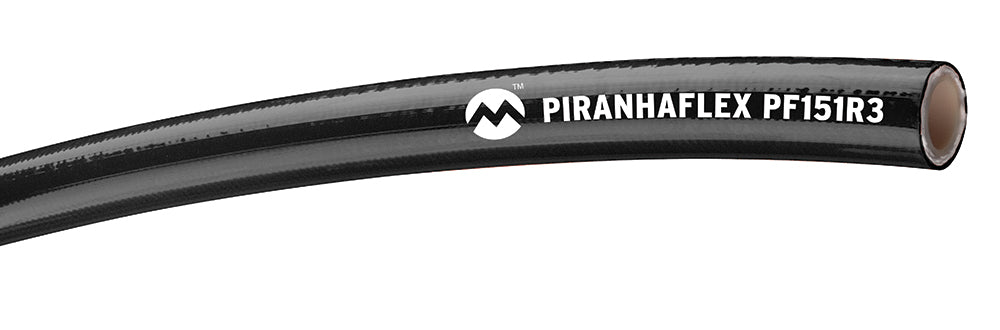

PF151R3-04 Alfagomma Piranhaflex™ by Kuriyama | PF151R3 Series | SAE 100R3 | Thermoplastic Hydraulic Hose | 1/4" ID | 0.410" OD | 1500 PSI
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Application: | Lower pressure hydraulic applications. Industrial equipment and vehicles (construction, agriculture, material handling, etc.) |
SAE Rating: | Meets or exceeds SAE 100R3 |
|---|---|---|---|

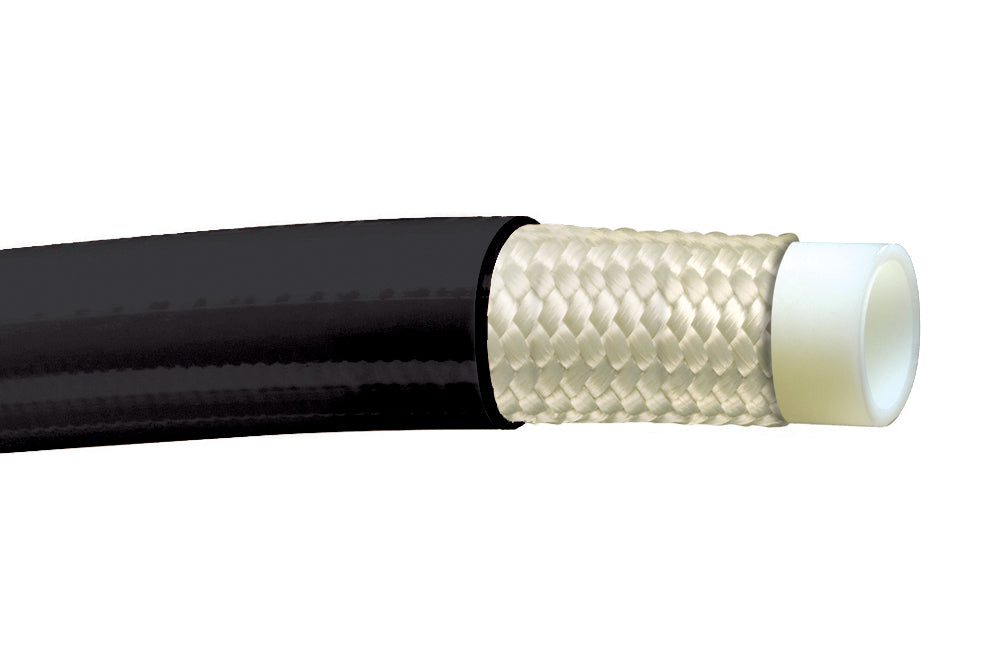

| Other Ratings: | - | Tube: | Nylon |
| Reinforcement: | Braided high tensile strength fibers | Cover: | Pin pricked, abrasion resistant, conductive polyurethane |
| Service Temperature Range: | -40°F (-40°C) to +200°F (+93°C) for petroleum based hydraulic fluids | ||
| Other Features: | |||
|
|||
| Part Number By the Foot |
Part Number 250ft Reel |
ID | OD | Max. Working Pressure* |
Min Bend Radius |
Weight | |||
|---|---|---|---|---|---|---|---|---|---|
| (in.) | (mm) | (in.) | (mm) | PSI | (in.) | (mm) | (lbs./ft.) | ||
| PF151R3-04 | PF151R3-04-250R | 1/4" | 6.4mm | 0.410" | 10.4mm | 1500 | 1.50" | 38.1mm | 0.05 lbs/ft |
| - | PF151R3-05-250R | 5/16" | 8.1mm | 0.520" | 13.2mm | 1500 | 1.75" | 44.5mm | 0.07 lbs/ft |
| - | PF151R3-06-250R | 3/8" | 9.7mm | 0.610" | 15.5mm | 1250 | 2.50" | 63.5mm | 0.10 lbs/ft |
| - | PF151R3-08-250R | 1/2" | 13.1mm | 0.750" | 19.1mm | 1000 | 3.00" | 76.2mm | 0.12 lbs/ft |
