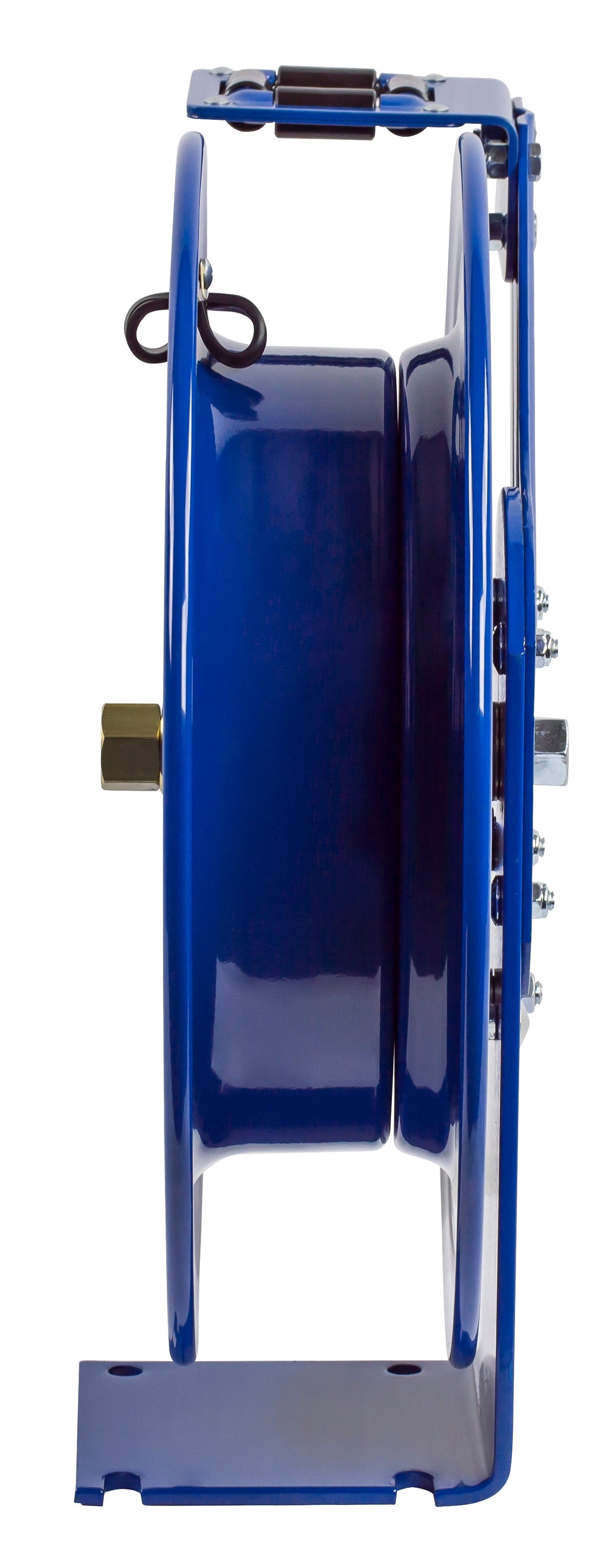

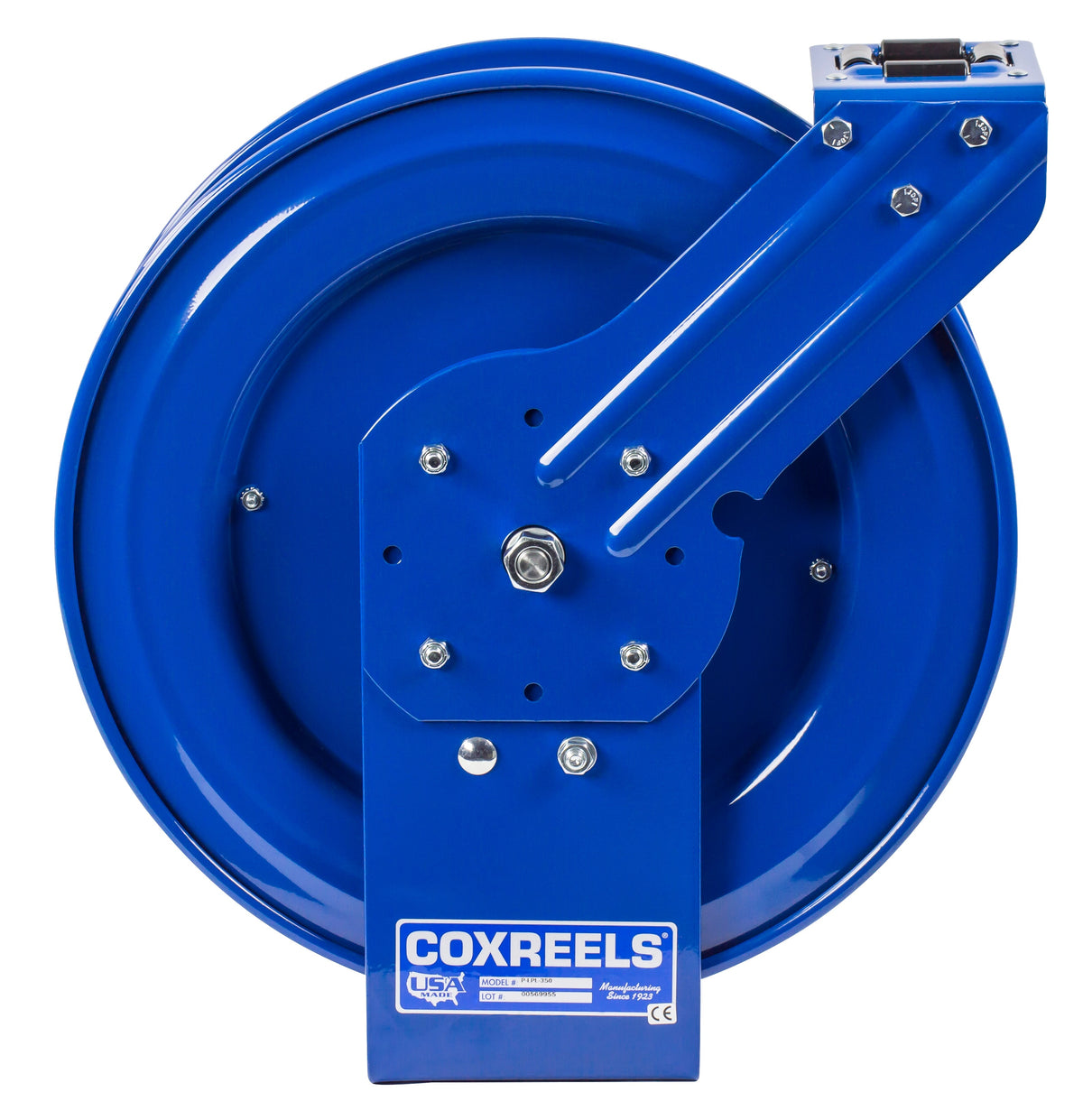

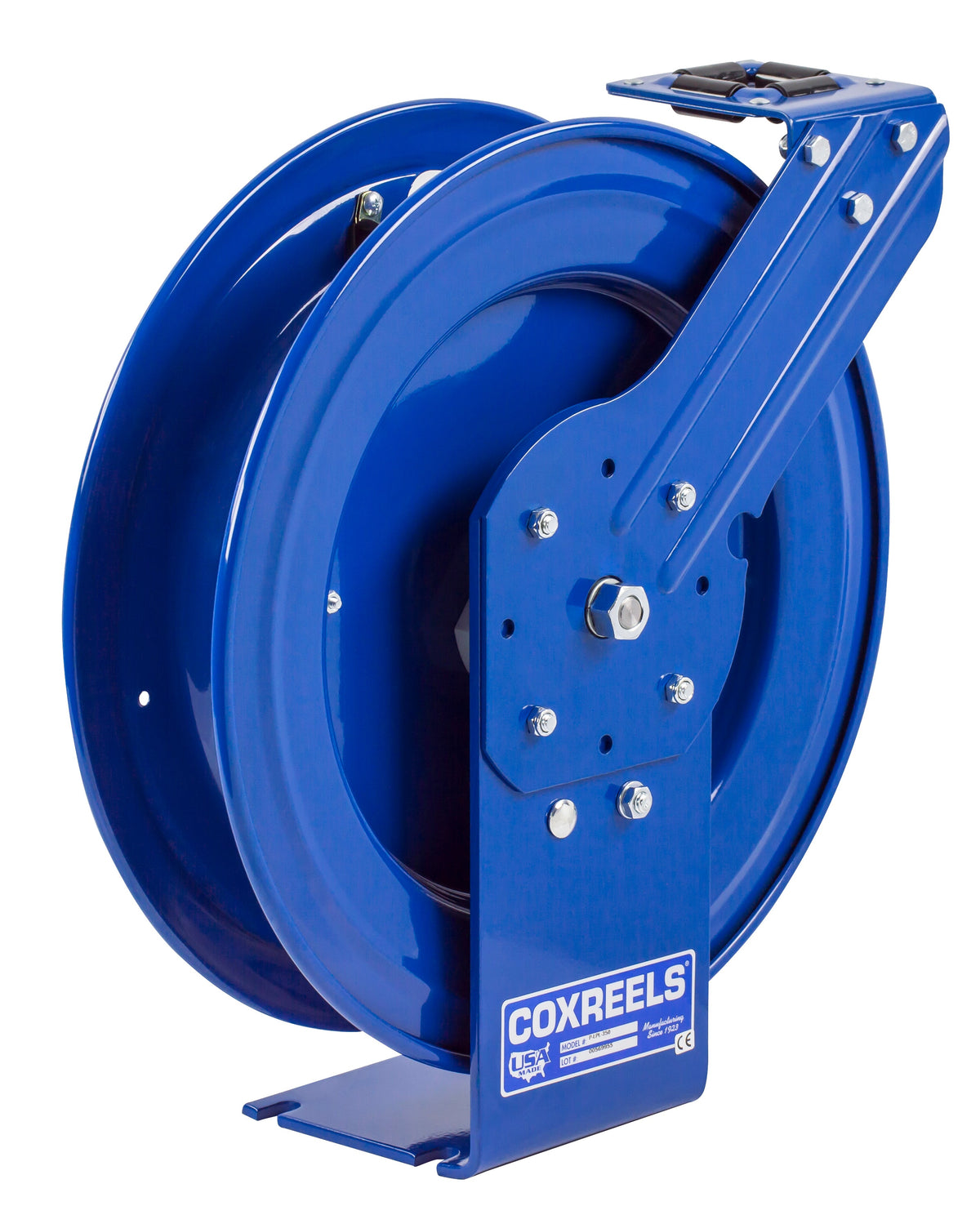

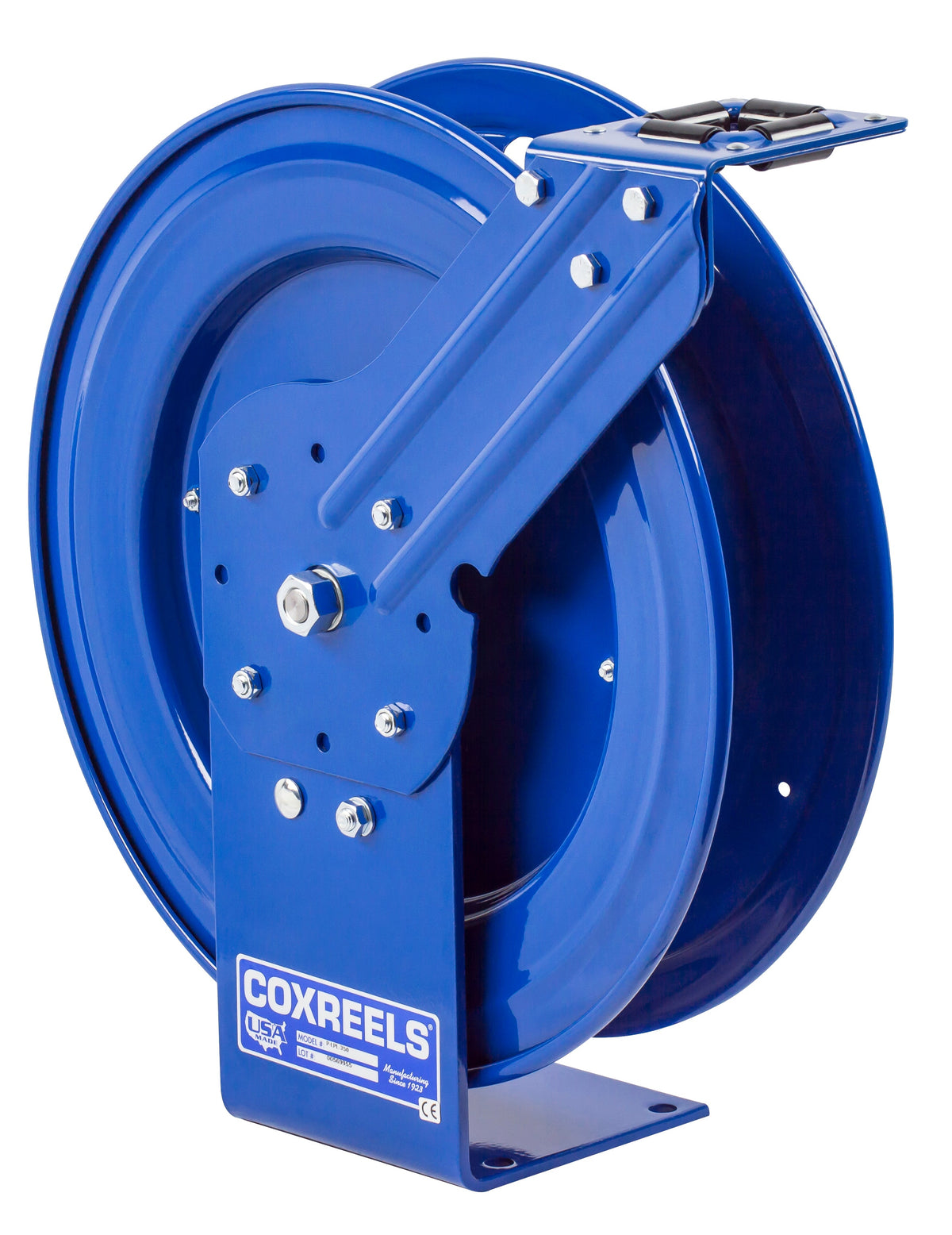

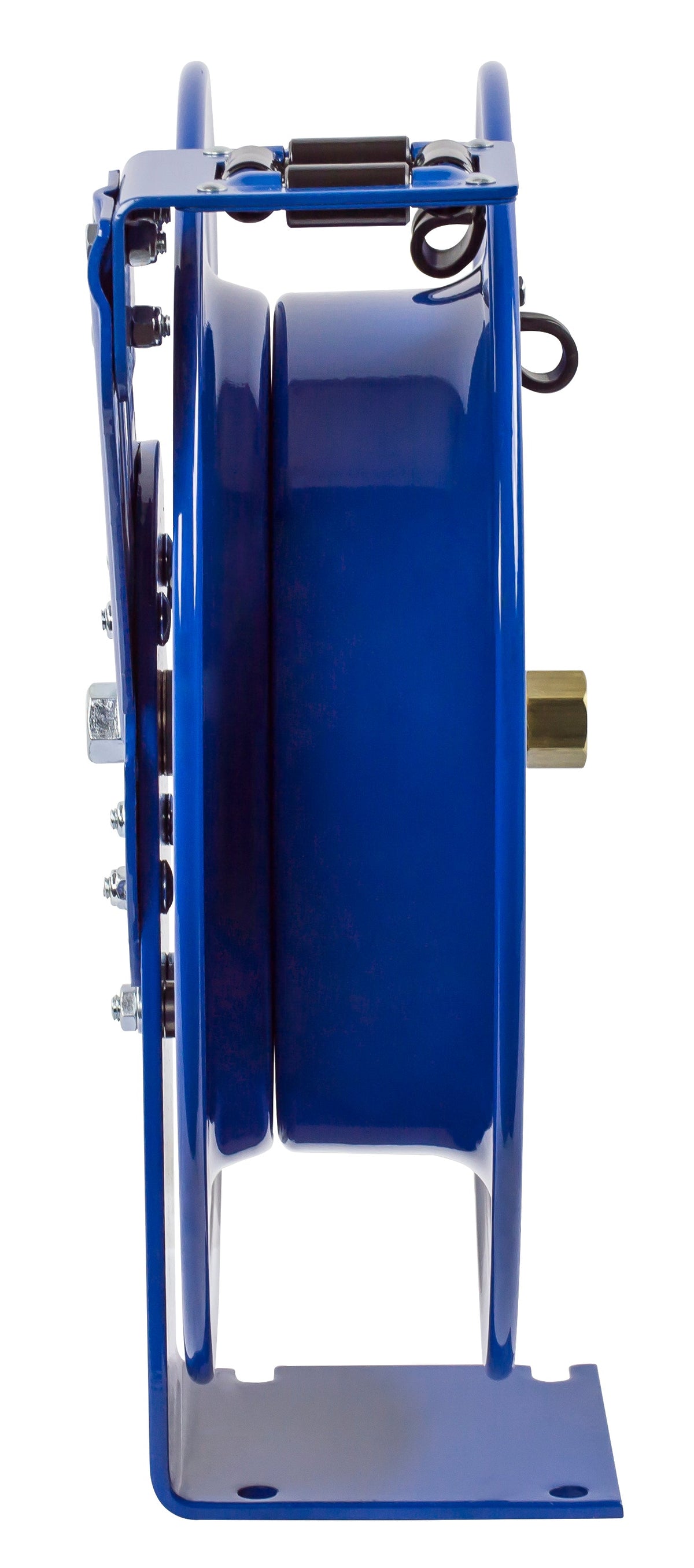

P-LPL-325-AL by Coxreels | Alumi-Pro Series | 300 PSI Spring Driven Hose Reel for Air & Water | 3/8" Hose ID, 3/8" FNPT Inlet | Aluminum | 25ft Capacity, Hose Not Included
Coxreels Alumi-Pro® Series Spring Driven Hose Reels
Aluminum single-pedestal spring driven hose reels for air, water and washdown, rated to 300 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Washdown
2
What are the key specifications?
Aluminum, single-pedestal
Brass 90° full-flow with Nitrile seals
Female NPT, same size as the hose I.D.
150°F
1" Permanently Lubricated Precision Bearings
CPC™ powder coat
Floor, Wall, Ceiling, Bench and Vehicles
Ø0.5"
3
What are the main product features?

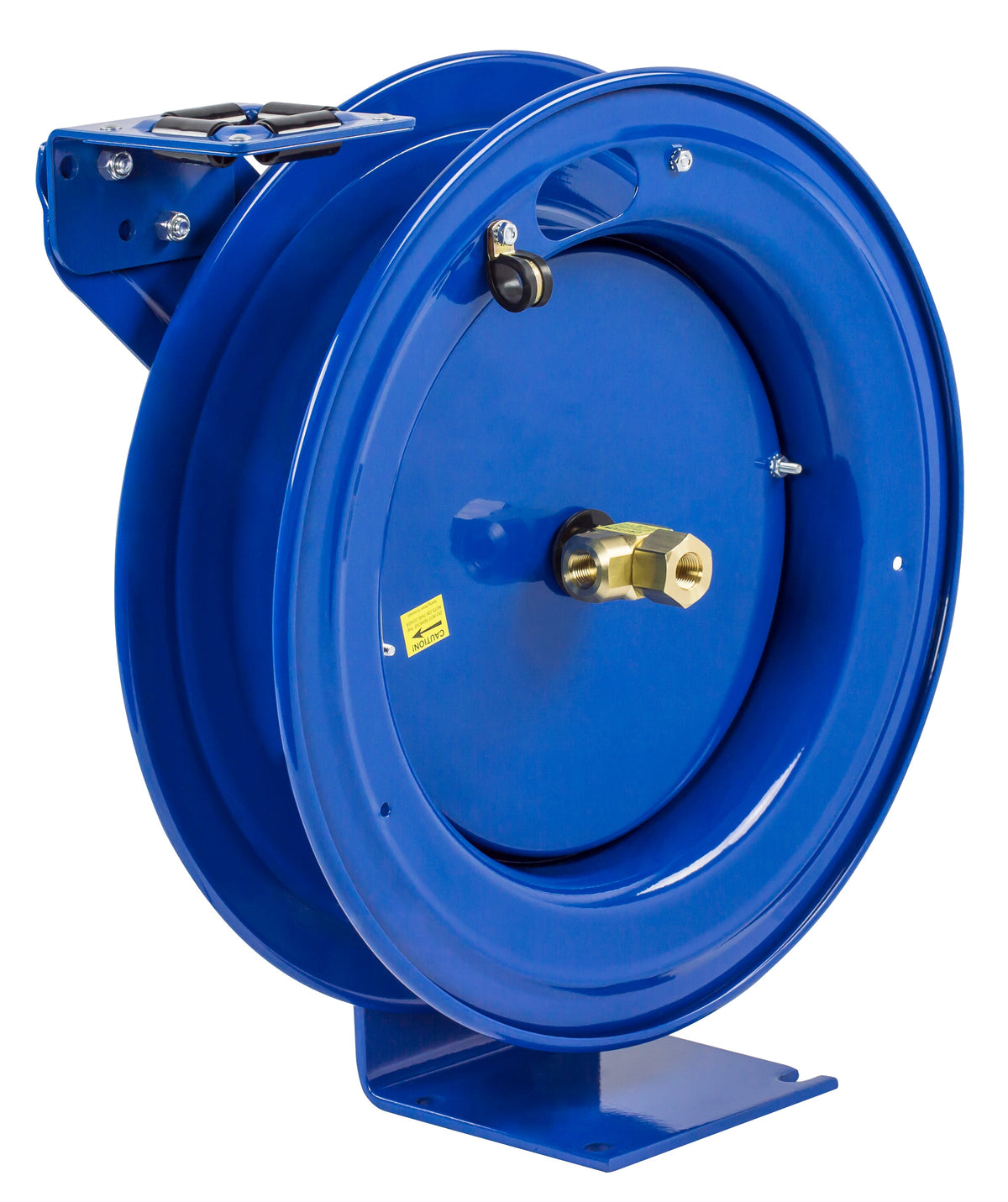

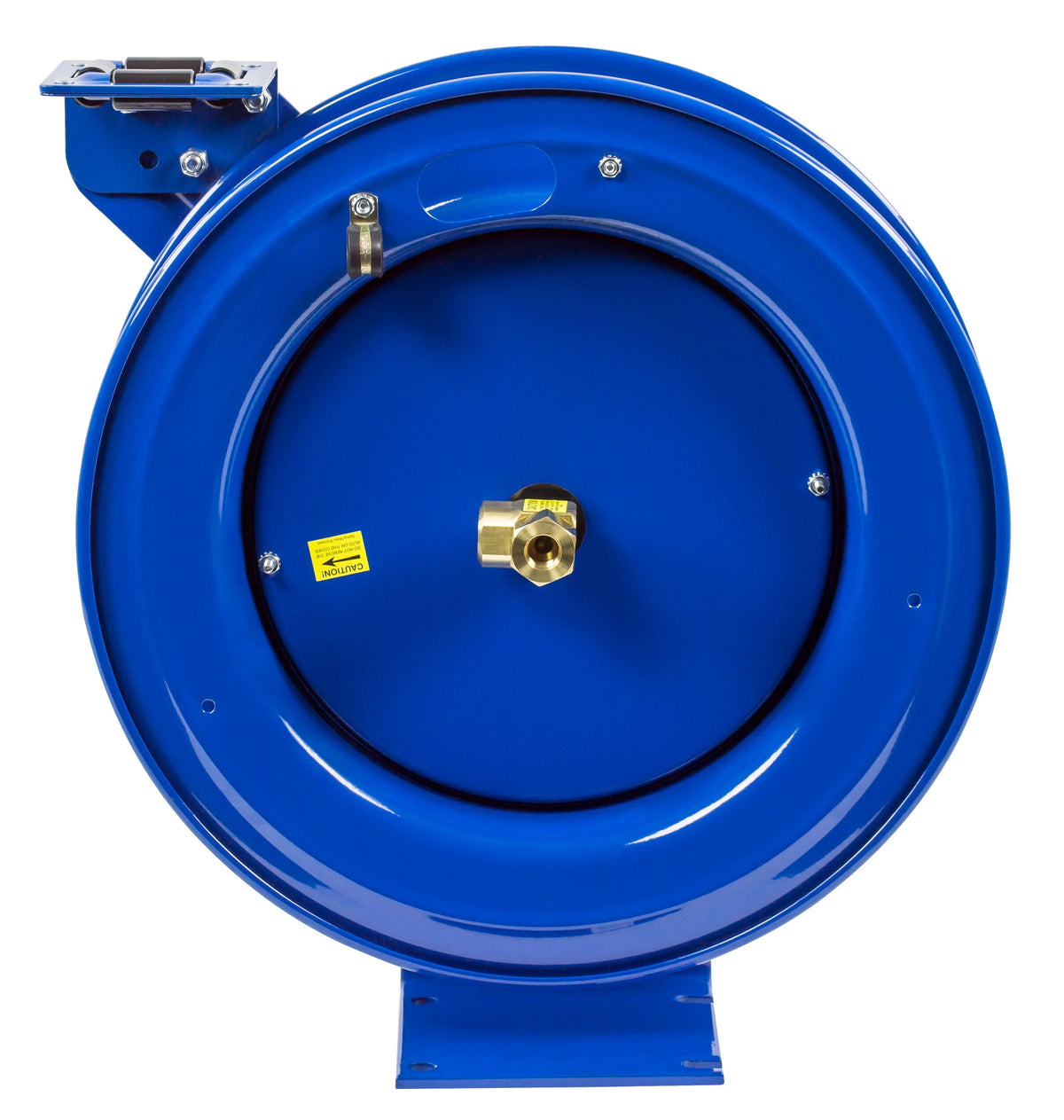

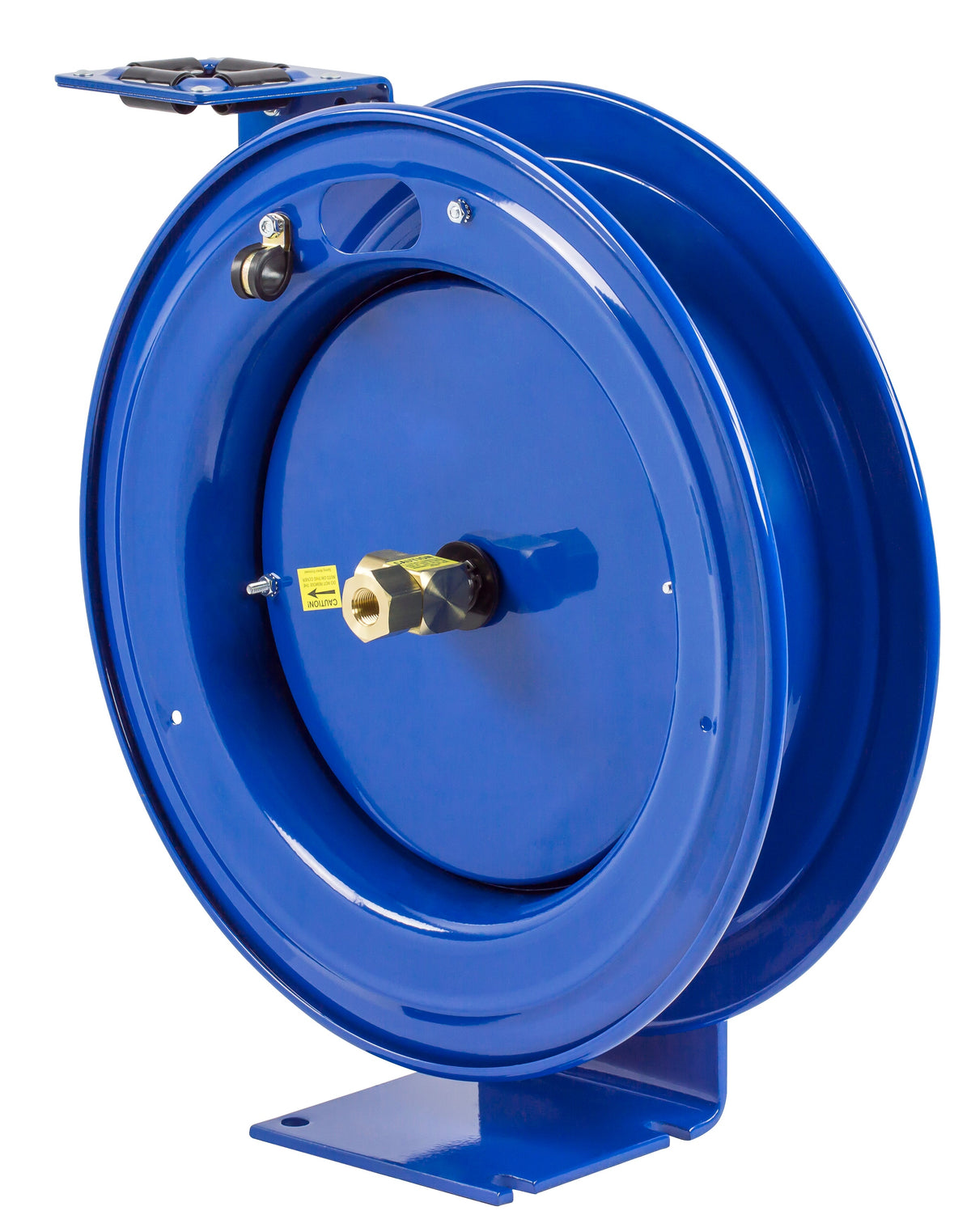

- Swivel — Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Precision coil spring factory tuned and matched to application for longest life cycle and performance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" Aluminum Base — Sturdy single pedestal design with solid one piece aluminum base and support post, no weld, for maximum stability and professional grade strenght without the weight.
- Multi-Position Guide Arm — Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Drum Width | Disc Diameter | Reel W × H × L (in) |
|---|---|---|---|---|---|---|
| Less hose | ||||||
| P-LPL-125-AL | 1/4" | 25 ft | 300 | 2.88" | 13" | 5.875 × 14.875 × 13.5 |
| P-LPL-150-AL | 1/4" | 50 ft | 300 | 3.75" | 17" | 6.75 × 18.625 × 17.125 |
| P-LPL-325-AL | 3/8" | 25 ft | 300 | 2.88" | 13" | 6.5 × 14.875 × 13.5 |
| P-LPL-350-AL | 3/8" | 50 ft | 300 | 3.75" | 17" | 6.75 × 18.625 × 17.125 |
| P-LPL-425-AL | 1/2" | 25 ft | 300 | 3.75" | 17" | 7 × 18.625 × 17.125 |
| P-LPL-430-AL | 1/2" | 30 ft | 300 | 3.75" | 17" | 7 × 18.625 × 17.125 |
| PVC | ||||||
| P-LP-125-AL | 1/4" | 25 ft | 300 | 2.88" | 13" | 5.875 × 14.875 × 13.5 |
| P-LP-150-AL | 1/4" | 50 ft | 300 | 3.75" | 17" | 6.75 × 18.625 × 17.125 |
| P-LP-325-AL | 3/8" | 25 ft | 300 | 2.88" | 13" | 6.5 × 14.875 × 13.5 |
| P-LP-350-AL | 3/8" | 50 ft | 300 | 3.75" | 17" | 6.75 × 18.625 × 17.125 |
| P-LP-425-AL | 1/2" | 25 ft | 300 | 3.75" | 17" | 7 × 18.625 × 17.125 |
| P-LP-430-AL | 1/2" | 30 ft | 300 | 3.75" | 17" | 7 × 18.625 × 17.125 |
5
Which accessories are available?
Inlet connections — by hose i.d.:
| Part # | Accessory | Fits |
|---|---|---|
| Hose end | ||
| 131 | Hose/cord stop | Hose I.D. 1/4" |
| 131-3 | Hose/cord stop | Hose I.D. 3/8" |
| 131-4 | Hose/cord stop | Hose I.D. 1/2" |
| 10759-1 | Quick disconnect | Hose I.D. 1/4" |
| 10759-2 | Quick disconnect | Hose I.D. 3/8" |
| 237-1 | Spiral hose/cord guard | Hose I.D. 1/4", 3/8" |
| 398-1 | Spiral hose/cord guard | Hose I.D. 1/2" |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 3-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXX plus -BVX is -GVX. Leave it off if it would be BXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Mounting suffix | |
| -F | Floor mount |
| -W | Wall mount |
| -B | Bottom-Truck mount |
| -D | Down mount |
| Hose suffix | |
| -BP | Blue PVC Hose |
| -YP | Yellow PVC Hose |
| -OG | Oil/Grease Resistant |
| -RH | Red EPDM |
| -BH | Black EPDM |
| Color / finish | |
| -GXX | Gray |
| -KXX | Gloss Black |
| -RXX | Red |
| -CXX | Wrinkle Black (25 reel minimum) |
| -WXX | Gloss White (25 reel minimum) |
| -NXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVX | Standard swivel with Viton |
| -BEX | Standard swivel with EPR |
| -BAX | Stainless steel swivel with Nitrile |
| -BBX | Stainless steel swivel with Viton |
| -BCX | Stainless steel swivel with EPR |
| -BGX | BSP swivel with Nitrile |
| -BHX | BSP swivel with Viton |
| -BIX | BSP swivel with EPR |
| -BYX | Food grade Brass swivel |
| -BWX | Food grade stainless steel swivel |
| -BZX | Less swivel |
| -BLX | Stainless steel BSP swivel with Nitrile |
| -BMX | Stainless steel BSP swivel with Viton |
| -BNX | Stainless steel BSP swivel with EPR |
| Other | |
| -BXB | Bend Restrictor |
| -BXC | Constant Tension |
| -BXK / -BXL | Air Tool Kit |
7
Where can I find product documents?
Alumi-Pro® Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
How is this product sold?
Each.
