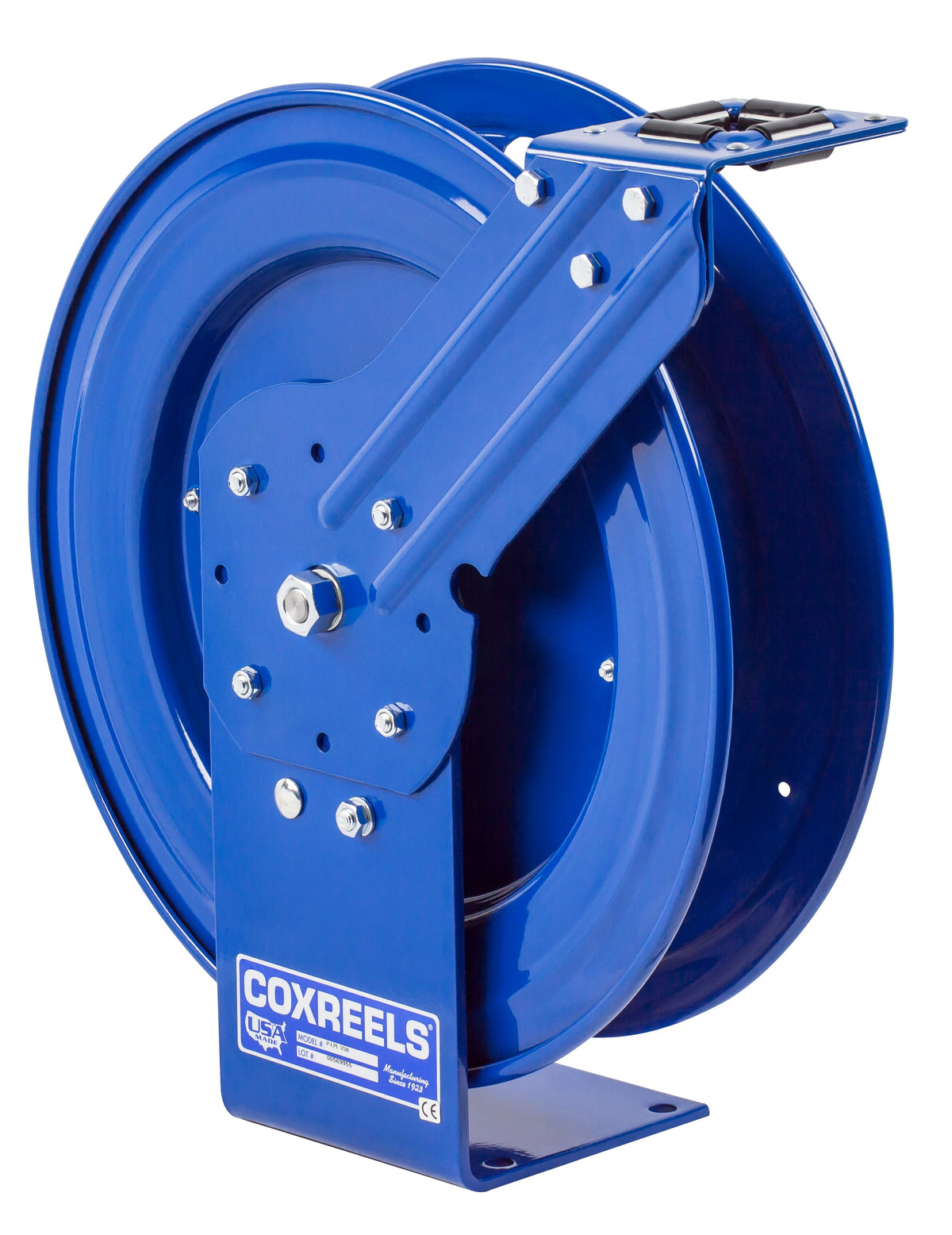

P-HPL-325 by Coxreels | P Series | 4,000 PSI Spring Driven Hose Reel | 3/8" Hose ID, 3/8" FNPT Inlet | Steel | 25ft Capacity, Hose Not Included
Buy more, save moreDiscounts applied in cart/checkout.
Spring Driven Hose Reel
Coxreels P Series Spring Driven Hose Reels
Compact single-pedestal hose reels with a factory-tuned cartridge spring motor, built in the U.S.A. for air, water, oil, grease and hydraulic lines.
1
What is this product used for?
- Low Pressure (300 PSI) — Air, water, washdown, chemical fluid transfer.
- Medium Pressure (2,500–3,000 PSI) — Air, water, oil & lubrication, washdown.
- High Pressure (4,000–5,000 PSI) — Air, water, oil & lubrication, grease & hydraulics, pressure washing.
2
What are the key specifications?
Pressure Rating
300 to 5,000 PSI depending on model
Swivel
90° full-flow brass (zinc plated steel on High Pressure) with Nitrile seals
Connections
Female NPT inlet, male NPT hose end, sized to the hose I.D.
Max Temperature
150°F with PVC hose, 250°F with rubber hose
Finish
CPC™ blue powder coat
Mounting Pattern
6.0" x 5.0" base, Ø0.50" holes
3
What are the main product features?
- Cartridge Spring Motor — Enclosed, factory-tuned stainless steel spring in a removable cartridge for safe, simple service.
- External Swivel — Replace seals or install hose without taking the reel off its mount.
- Multi-Position Lock — Ratchet holds the hose at any length; guide arm adjusts for floor, wall, ceiling, bench or vehicle mounting.
- Heavy Gauge Steel — One-piece 1/4" steel base and post, CNC spun ribbed discs with rolled edges and a 1" axle on permanently lubricated precision bearings.
4
Which models are available?
| With Hose | Less Hose | Hose I.D. | Capacity | Max PSI | Reel W × H × L (in) |
|---|---|---|---|---|---|
| Low Pressure — 300 PSI red PVC hose | |||||
| P-LP-110 | P-LPL-110 | 1/4" | 10 ft | 300 | 5.875 × 14.875 × 13.5 |
| P-LP-115 | P-LPL-115 | 1/4" | 15 ft | 300 | 5.875 × 14.875 × 13.5 |
| P-LP-125 | P-LPL-125 | 1/4" | 25 ft | 300 | 5.875 × 14.875 × 13.5 |
| P-LP-130 | P-LPL-130 | 1/4" | 30 ft | 300 | 5.875 × 14.875 × 13.5 |
| P-LP-135 | P-LPL-135 | 1/4" | 35 ft | 300 | 5.875 × 14.875 × 13.5 |
| P-LP-140 | P-LPL-140 | 1/4" | 40 ft | 300 | 6.75 × 18.625 × 17.125 |
| P-LP-150 | P-LPL-150 | 1/4" | 50 ft | 300 | 6.75 × 18.625 × 17.125 |
| P-LP-310 | P-LPL-310 | 3/8" | 10 ft | 300 | 6.5 × 14.875 × 13.5 |
| P-LP-315 | P-LPL-315 | 3/8" | 15 ft | 300 | 6.5 × 14.875 × 13.5 |
| P-LP-325 | P-LPL-325 | 3/8" | 25 ft | 300 | 6.5 × 14.875 × 13.5 |
| P-LP-330 | P-LPL-330 | 3/8" | 30 ft | 300 | 6.75 × 18.625 × 17.125 |
| P-LP-335 | P-LPL-335 | 3/8" | 35 ft | 300 | 6.75 × 18.625 × 17.125 |
| P-LP-340 | P-LPL-340 | 3/8" | 40 ft | 300 | 6.75 × 18.625 × 17.125 |
| P-LP-350 | P-LPL-350 | 3/8" | 50 ft | 300 | 6.75 × 18.625 × 17.125 |
| P-LP-415 | P-LPL-415 | 1/2" | 15 ft | 300 | 7 × 18.625 × 17.125 |
| P-LP-425 | P-LPL-425 | 1/2" | 25 ft | 300 | 7 × 18.625 × 17.125 |
| P-LP-430 | P-LPL-430 | 1/2" | 30 ft | 300 | 7 × 18.625 × 17.125 |
| P-LP-450 | P-LPL-450 | 1/2" | 50 ft | 300 | 7 × 18.625 × 17.125 |
| Medium Pressure — 1-wire rubber hose | |||||
| P-MP-320 | P-MPL-320 | 3/8" | 20 ft | 3,000 | 7 × 18.625 × 17.125 |
| P-MP-325 | P-MPL-325 | 3/8" | 25 ft | 3,000 | 7 × 18.625 × 17.125 |
| P-MP-330 | P-MPL-330 | 3/8" | 30 ft | 3,000 | 7 × 18.625 × 17.125 |
| P-MP-335 | P-MPL-335 | 3/8" | 35 ft | 3,000 | 7 × 18.625 × 17.125 |
| P-MP-420 | P-MPL-420 | 1/2" | 20 ft | 2,500 | 7 × 18.625 × 17.125 |
| P-MP-425 | P-MPL-425 | 1/2" | 25 ft | 2,500 | 7 × 18.625 × 17.125 |
| P-MP-430 | P-MPL-430 | 1/2" | 30 ft | 2,500 | 7 × 18.625 × 17.125 |
| High Pressure — 2-wire rubber hose | |||||
| P-HP-120 | P-HPL-120 | 1/4" | 20 ft | 5,000 | 7 × 18.625 × 17.125 |
| P-HP-125 | P-HPL-125 | 1/4" | 25 ft | 5,000 | 7 × 18.625 × 17.125 |
| P-HP-130 | P-HPL-130 | 1/4" | 30 ft | 5,000 | 7 × 18.625 × 17.125 |
| P-HP-135 | P-HPL-135 | 1/4" | 35 ft | 5,000 | 7 × 18.625 × 17.125 |
| P-HP-320 | P-HPL-320 | 3/8" | 20 ft | 4,000 | 7 × 18.625 × 17.125 |
| P-HP-325 | P-HPL-325 | 3/8" | 25 ft | 4,000 | 7 × 18.625 × 17.125 |
| P-HP-330 | P-HPL-330 | 3/8" | 30 ft | 4,000 | 7 × 18.625 × 17.125 |
5
Which accessories are available?
| Part # | Accessory | Fits |
|---|---|---|
| Mounting brackets — fit every model except P-LP(L)-310 and -315 | ||
| 15720 | Swing bracket — vertical surface, swings 180° | |
| 15721 | Swivel bracket — horizontal surface, rotates 345° | |
| MR-1 | Overhead bracket — I or H beam, 3" to 8.5" flange | |
| 15723 | EZ-Up bracket — slide-in overhead mount | |
| 15724 | EZ-Up beam adapter — for mounting the EZ-Up to an I or H beam | |
| Inlet connections | ||
| 5150-1.5 | 18" inlet hose | P-LP(L)-125 to -150 |
| 5153-1.5 | 18" inlet hose | P-LP(L)-325 to -350 |
| 5154-1.5 | 18" inlet hose | 1/2" LP models |
| 5224-1.5 | 18" inlet hose | 3/8" MP models |
| 5256-1.5 | 18" inlet hose | 1/2" MP models |
| 5304-1.5 | 18" inlet hose | 1/4" HP models |
| 5336-1.5 | 18" inlet hose | 3/8" HP models |
| 6088 | 90° inlet elbow | 1/4" LP models |
| 208 | 90° inlet elbow | 3/8" LP models |
| 222 | 90° inlet elbow | 1/2" LP models |
| 500 | 90° inlet elbow | 3/8" MP models |
| 1671 | 90° inlet elbow | 1/2" MP models |
| 616 | 90° inlet elbow | 1/4" HP models |
| 617 | 90° inlet elbow | 3/8" HP models |
| 15717 | Garden hose inlet kit | 1/2" LP models |
| Hose end | ||
| 10759-1 | Quick disconnect | 1/4" LP models |
| 10759-2 | Quick disconnect | 3/8" LP models |
| 237-1 | Spiral hose guard | All 1/4" and 3/8" models |
| 398-1 | Spiral hose guard | All 1/2" models |
| 131 | Hose stop | All 1/4" models |
| 131-3 | Hose stop | All 3/8" models |
| 131-4 | Hose stop | All 1/2" models |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. A configured part number is the model, then any mounting and hose suffix, then a 3-character code of color, swivel and other option in that order, with X for standard. Example: P-LP-350-W-BP-RVC = P-LP-350, wall mount, blue PVC hose, R red, V Viton seal, C constant tension. If the code would be BXX, leave it off.
| Code | Option |
|---|---|
| Suffixes — added after the model number | |
| -D / -B / -W | Mounting: down / bottom-truck / wall-truck (floor/ceiling is standard, no suffix) |
| -OG / -RH / -BH | Hose: black oil/grease resistant / red EPDM / black EPDM — Low Pressure with hose only |
| -BP / -YP | Hose: blue PVC / yellow PVC — Low Pressure with hose only |
| Code character 1 — color | |
| B | Blue (standard) |
| G / K / R | Gray / gloss black / red |
| C / W / N | Wrinkle black / white / green — 25 reel minimum |
| Code character 2 — swivel and seal | |
| X | Standard swivel, Nitrile seal |
| V / E | Standard swivel, Viton / EPR seal |
| A / B / C | Stainless steel swivel, Nitrile / Viton / EPR seal |
| G / H / I | BSP swivel, Nitrile / Viton / EPR seal |
| L / M / N | Stainless steel BSP swivel, Nitrile / Viton / EPR seal |
| Y / W / Z | Food grade brass / food grade stainless steel / less swivel |
| Code character 3 — other (X = none) | |
| B / C / S | Bend restrictor (Low Pressure with hose) / constant tension, no lock / solid roller assembly |
| K / L | Air tool kit — Low Pressure 3/8" and 1/2" |
| R / N | Reverse configuration / non-sparking lock |
7
Where can I find product documents?
P Series Spec Sheet
Dimension drawing, capacities, hose specifications and the full part-number key.
Spring Rewind Reel Operating Manual
Installation, mounting, spring tension adjustment and routine maintenance.
Exploded Parts Drawing (EXP-10)
Numbered parts breakdown with replacement part numbers for every P Series model.
Made in the U.S.A. by Coxreels. 2-year limited manufacturer’s warranty (parts only).
How is this product sold?
Each.
