OVAC-3.0-100 by Texcel | TEX-OVAC Series | Oilfield Suction Hose | 3" Hose ID | 29 in/Hg Vacuum Rated | 150 PSI | Black
Buy more, save moreDiscounts applied in cart/checkout.
Petroleum Hose

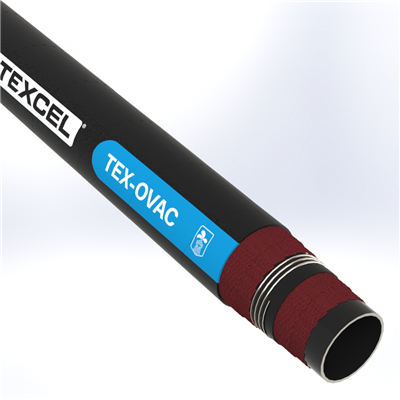

TEX-OVAC Oilfield Suction Hose
Texcel's exclusive design for rugged oilfield service where full suction and working pressures are required.
1
What is this hose used for?
- Oilfield suction
- Oilfield pressure service
⚠ CAUTION: Not recommended for refined petroleum products.
2
What are the key specifications?
Tube
Black, specially compounded elastomer, low oil swell
Cover
Black, SBR/nitrile blend compounded for oil and ozone resistance (smooth)
Reinforcement
High tensile tire cord plies; dual helix wire
Temperature Range
-20°F to +180°F
Safety Factor
4:1
Branding
TEXCEL® TEX-OVAC - OILFIELD SUCTION HOSE NOT FOR REFINED FUELS 150 PSI W.P.
3
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|
| OVAC-1.5-100 | 1-1/2" | 1-56/64" | 150 | 29 | 6" | 0.67 |
| OVAC-2.0-100 | 2" | 2-28/64" | 150 | 29 | 7" | 0.87 |
| OVAC-3.0-100 | 3" | 3-32/64" | 150 | 29 | 9" | 1.52 |
| OVAC-4.0-100 | 4" | 4-36/64" | 150 | 29 | 14" | 3.32 |
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
