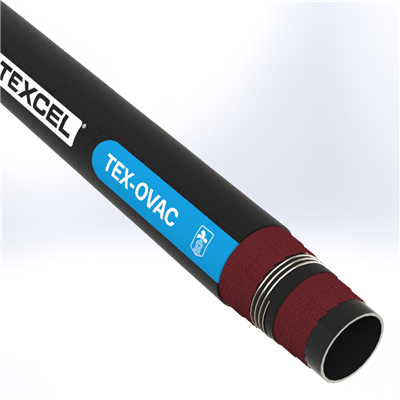

OVAC-2.0-100 by Texcel | TEX-OVAC Series | Oilfield Suction Hose | 2" Hose ID | 29 in/Hg Vacuum Rated | 150 PSI | Black
Texcel
TEX-OVAC Series | Oilfield Suction Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $16.93 |
| 40–79 | $15.31 |
| 80+ | $13.51 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | Texcel’s exclusive design for rugged oilfield service where full suction and working pressures are required. | Tube: | Black, specially compounded elastomer low oil swell |
| Cover: | Black, SBR/Nitrile blend compounded for oil and ozone resistance (smooth) | Reinforcement: | High tensile tire cord plies; dual helix wire |
| Safety Factor: | 4:1 | Temperature: | -20°F to +180°F |
| Branding: | TEXCEL® TEX-OVAC - OILFIELD SUCTION HOSE NOT FOR REFINED FUELS 150 PSI W.P. | Safety Note: | Not recommended for refined petroleum products |
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft |
|---|---|---|---|---|---|---|
| OVAC-1.5-100 | 1-1/2" | 1-56/64" | 150 psi | 29 in./HG | 6" | 0.67 lbs |
| OVAC-2.0-100 | 2" | 2-28/64" | 150 psi | 29 in./HG | 7" | 0.87 lbs |
| OVAC-3.0-100 | 3" | 3-32/64" | 150 psi | 29 in./HG | 9" | 1.52 lbs |
| OVAC-4.0-100 | 4" | 4-36/64" | 150 psi | 29 in./HG | 14" | 3.32 lbs |
