OSD-8.0-200-100 by Texcel | TEX-OSD 250 Series | Oil Suction & Discharge Hose | 8" Hose ID | 250 PSI | 29 in/Hg Vacuum Rated | Black
Buy more, save moreDiscounts applied in cart/checkout.
Petroleum Hose

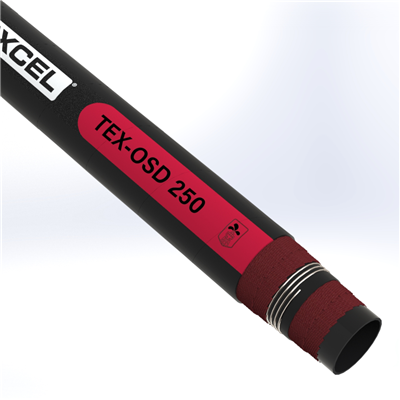

TEX-OSD 250 Oil Suction & Discharge Hose
Smooth bore dock hose with high strength construction and 250 psi working pressure for the longest possible service life under severe conditions.
1
What is this hose used for?
Meets U.S.C.G. certification requirements when assembled per USCG 33CFR 154.500 specifications.
- Dock service
- Oil suction
- Oil discharge
2
What are the key specifications?
Tube
Black, nitrile, 55% aromatics (ORS)
Cover
Black, neoprene
Reinforcement
High tensile tire cord plies; dual helix on sizes 2" – 4"; single helix wire on sizes 6" – 12"
Temperature Range
-40°F to +190°F
Safety Factor
4:1
Working Pressure
250 psi
Standards
Meets U.S.C.G. requirements (USCG 33CFR 154.500)
Branding
TEXCEL® TEX-OSD 250 - OIL SUCTION AND DISCHARGE HOSE 250 PSI W.P. MEETS USCG 33CFR 154.500
3
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|
| OSD-2.0-100 | 2" | 2-60/64" | 250 | 29 | 8" | 2.15 |
| OSD-3.0-100 | 3" | 4-16/64" | 250 | 29 | 11" | 3.41 |
| OSD-4.0-100 | 4" | 5-20/64" | 250 | 29 | 15" | 4.87 |
| OSD-6.0-200-100 | 6" | 7-24/64" | 250 | 29 | 25" | 8.18 |
| OSD-8.0-200-100 | 8" | 9-48/64" | 250 | 29 | 31" | 14.35 |
| OSD-10.0-40 | 10" | 12" | 250 | 29 | 36" | 20.49 |
| OSD-12.0-40 | 12" | 14-8/64" | 250 | 29 | 40" | 26.49 |
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
