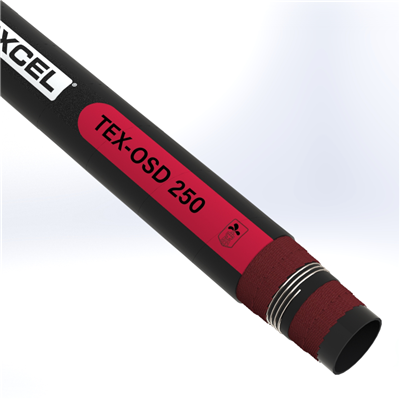

OSD-2.0-100 by Texcel | TEX-OSD 250 Series | Oil Suction & Discharge Hose | 2" Hose ID | 250 PSI | 29 in/Hg Vacuum Rated | Black
Texcel
TEX-OSD 250 Series | 250psi Oil Suction & Discharge Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $38.62 |
| 40–79 | $34.92 |
| 80+ | $30.81 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | Smooth bore dock hose with high strength construction and 250psi working pressure for the longest possible service life under severe conditions. Meets U.S.C.G. certification requirements when assembled per USCG 33CFR 154.500 specifications. | Tube: | Black, Nitrile, 55% aromatics (ORS) |
| Cover: | Black, Neoprene | Reinforcement: | High tensile tire cord plies; dual helix on sizes 2”-4”; single helix wire on sizes 6”-12” |
| Safety Factor: | 4:1 | Temperature: | -40°F to +190°F |
| Branding: | TEXCEL® TEX-OSD 250 - OIL SUCTION AND DISCHARGE HOSE 250 PSI W.P. MEETS USCG 33CFR 154.500 | Specifications: | Meets U.S.C.G. requirements |
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft |
|---|---|---|---|---|---|---|
| OSD-2.0-100 | 2" | 2-60/64" | 250 psi | 29 | 8" | 2.15 lbs |
| OSD-3.0-100 | 3" | 4-16/64" | 250 psi | 29 | 11" | 3.41 lbs |
| OSD-4.0-100 | 4" | 5-20/64" | 250 psi | 29 | 15" | 4.87 lbs |
| OSD-6.0-200-100 | 6" | 7-24/64" | 250 psi | 29 | 25" | 8.18 lbs |
| OSD-8.0-200-100 | 8" | 9-48/64" | 250 psi | 29 | 31" | 14.35 lbs |
| OSD-10.0-40 | 10" | 12" | 250 psi | 29 | 36" | 20.49 lbs |
| OSD-12.0-40 | 12" | 14-8/64" | 250 psi | 29 | 40" | 26.49 lbs |
