Sale price$14,857.96

Kuriyama
OROFLEX® TERRAIN™ | OFTR Series | Discharge Layflat Hose

Built for high-volume fluid handling.

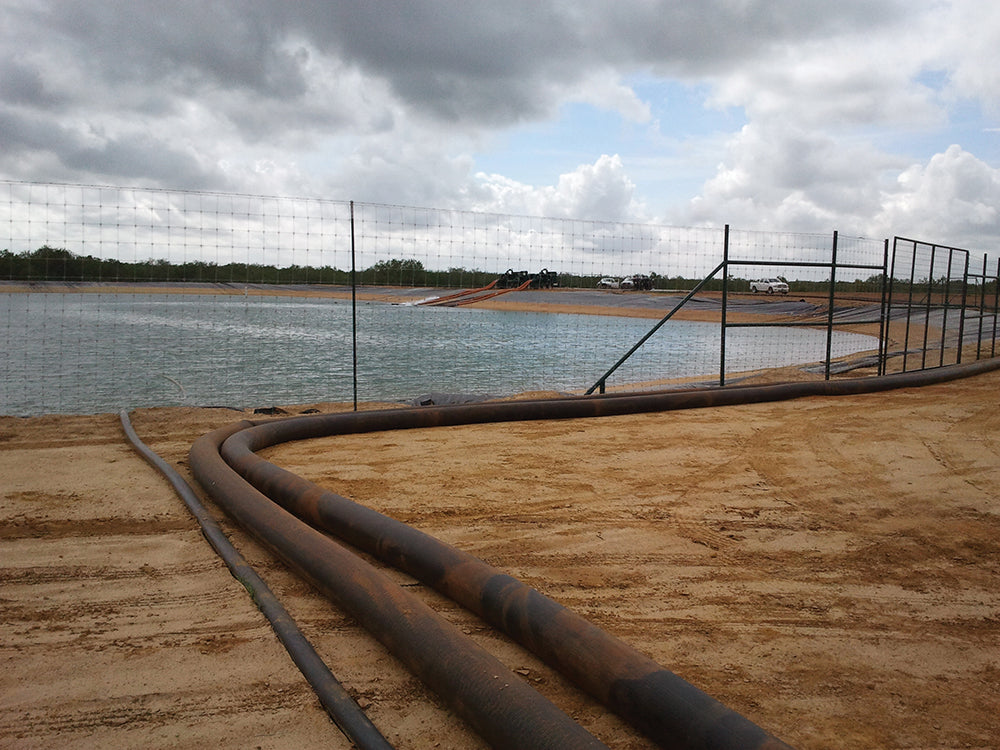

Ideal for dewatering, drinking water and manure transfer, mining, fracking, and emergency or general water supply applications.

Resistant to snaking, kinking, stretching and twisting.

Made in Europe.

Package Quantity: 660 Foot

Buy More, Save More!
Quantity Price Each
3–5 $13,966.48
6+ $13,372.16
Discounts applied in cart/checkout.

Product Data:

Brand:
  • OROFLEX TERRAIN
Series:
  • OFTR Series
Color(s):
  • Black

SPECIFICATIONS

Applications: Dewatering.
Drinking water transport.
Fluid transfer.
Large volume water transfer including fracking.
Manure transfer.
Mining.
Emergency water supply.

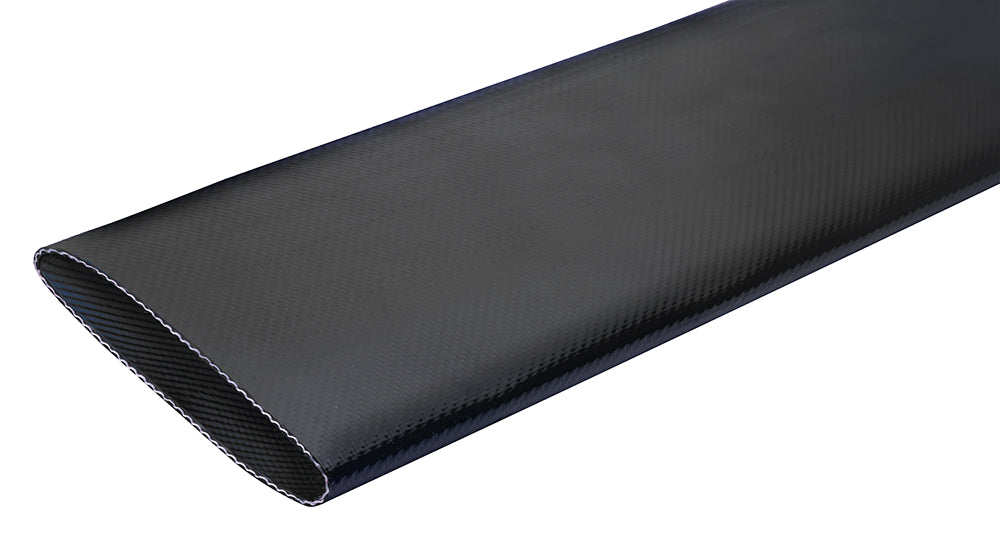

Construction: Black polyurethane (TPU) hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range: -58°F (-50°C) to +150°F (+65°C);
Intermittent service to +175°F (+79°C)
Other Features:
  • Premium Polyurethane (TPU) Material - Exhibits exceptional resistance to abrasion, allowing for use in applications where severe abrasion is a factor and providing longer service life versus rubber or PVC hoses. Also, exhibits exceptional resistance to oils and petroleum based products.
  • Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting.
  • Longer Lengths - Manufactured in special 660 foot lengths to reduce possible leaking points.
  • Smooth TPU Tube - Provides low friction loss.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
  • Supreme UV and Ozone Resistance - For extreme UV and ozone conditions.
  • Cost Efficient - Savings for 16" versus using 2 x 12" lines.
  • Made in Europe.
Part Number
660ft		 Size Hose ID Wall
Thickness		 Working
Pressure
(PSI)		 Burst
Pressure		 Tensile
Strength
(in) (mm) (in) (mm) (in) at 68°F at 68°F (lbs)
OFTR-800X660 8" 203.2mm 8.100" 206.0mm 0.165" 200 PSI 600 PSI 77,200 lbs
OFTR-1000X660 10" 254.0mm 10.100" 256.0mm 0.169" 200 PSI 500 PSI 99,200 lbs
OFTR-1200X660 12" 304.8mm 12.106" 307.5mm 0.185" 175 PSI 435 PSI 121,300 lbs
OFTRH-1200X660 12" 304.8mm 12.106" 307.5mm 0.185" 200 PSI 500 PSI 154,300 lbs
