OFTR-800X660 OROFLEX® TERRAIN™ by Kuriyama | OFTR Series | Discharge Layflat Hose | Polyurethane | 8" Size | 8.100" Hose ID | Black | 660ft Length
OFTR-800X660 OROFLEX® TERRAIN™ by Kuriyama | OFTR Series | Discharge Layflat Hose | Polyurethane | 8" Size | 8.100" Hose ID | Black | 660ft Length

OFTR-800X660 OROFLEX® TERRAIN™ by Kuriyama | OFTR Series | Discharge Layflat Hose | Polyurethane | 8" Size | 8.100" Hose ID | Black | 660ft Length

Sale price$12,040.20

Package Quantity: 660 Foot

Buy more, save moreDiscounts applied in cart/checkout.

SPECIFICATIONS

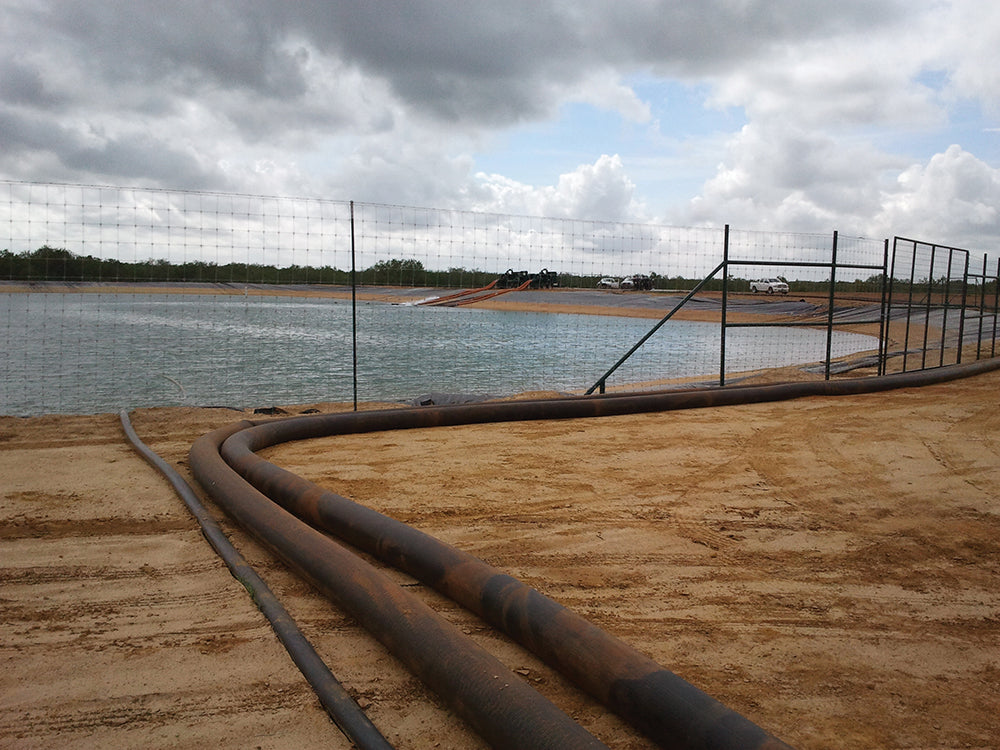

Applications: Dewatering.
Drinking water transport.
Fluid transfer.
Large volume water transfer including fracking.
Manure transfer.
Mining.
Emergency water supply.

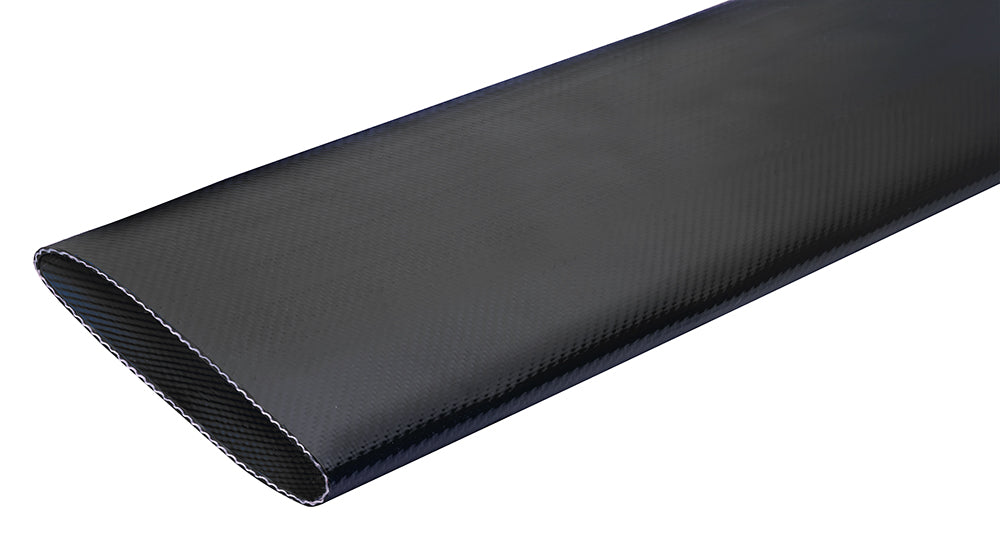

Construction: Black polyurethane (TPU) hose using an extruded through-the-weave process with circular woven high tenacity polyester reinforcement.
Service Temperature Range: -58°F (-50°C) to +150°F (+65°C);
Intermittent service to +175°F (+79°C)
Other Features:
  • Premium Polyurethane (TPU) Material - Exhibits exceptional resistance to abrasion, allowing for use in applications where severe abrasion is a factor and providing longer service life versus rubber or PVC hoses. Also, exhibits exceptional resistance to oils and petroleum based products.
  • Unique Woven Construction - Specially designed weave pattern provides resistance to snaking, kinking, stretching and twisting.
  • Longer Lengths - Manufactured in special 660 foot lengths to reduce possible leaking points.
  • Smooth TPU Tube - Provides low friction loss.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
  • Supreme UV and Ozone Resistance - For extreme UV and ozone conditions.
  • Cost Efficient - Savings for 16" versus using 2 x 12" lines.
  • Made in Europe.
Part Number
660ft		 Size Hose ID Wall
Thickness		 Working
Pressure
(PSI)		 Burst
Pressure		 Tensile
Strength
(in) (mm) (in) (mm) (in) at 68°F at 68°F (lbs)
OFTR-800X660 8" 203.2mm 8.100" 206.0mm 0.165" 200 PSI 600 PSI 77,200 lbs
OFTR-1000X660 10" 254.0mm 10.100" 256.0mm 0.169" 200 PSI 500 PSI 99,200 lbs
OFTR-1200X660 12" 304.8mm 12.106" 307.5mm 0.185" 175 PSI 435 PSI 121,300 lbs
OFTRH-1200X660 12" 304.8mm 12.106" 307.5mm 0.185" 200 PSI 500 PSI 154,300 lbs

Additional Product Data:

Brand:
  • OROFLEX TERRAIN
Series:
  • OFTR Series
Color(s):
  • Black

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
