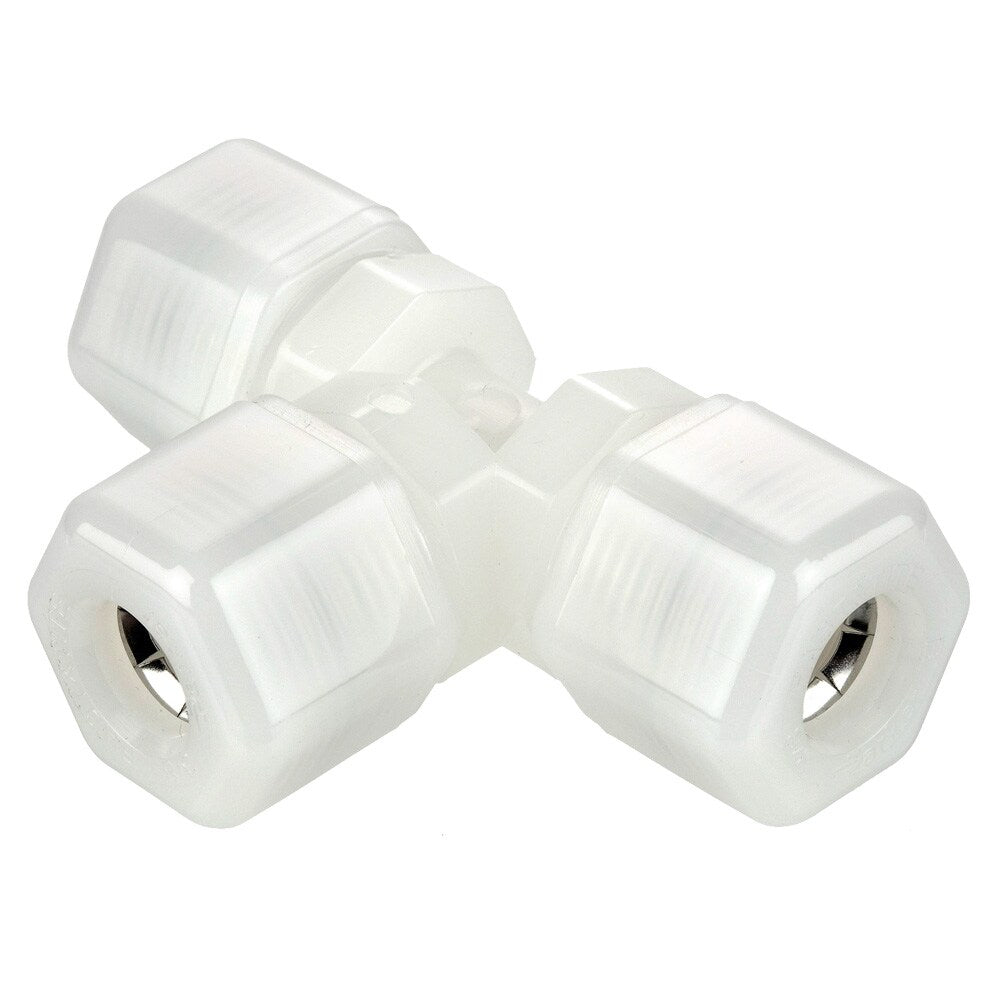

N8TU8 by Parker | Tube to Tube Fitting | 1/2" Tube OD | 1" Hex | 2.92" Length | Tee | Natural | Nylon

N8TU8 by Parker | Tube to Tube Fitting | 1/2" Tube OD | 1" Hex | 2.92" Length | Tee | Natural | Nylon

Sale price$7.02

by Parker Hannifin
Fast & Tite® Fittings:TU - Tee Union
Buy More, Save More!
Quantity Price Each
20–39 $6.60
40–79 $5.97
80+ $5.27
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Fast & Tite®
Series:
  • TU Series
Shape:

Tee
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black PPL Part No. White Nylon Part No. Nom. Tube O.D. C Hex M N Flow Dia. D
P4TU4 N4TU4 1/4 11/16 1.09 1.09 .170
P5TU5 N5TU5 5/16 11/16 1.09 1.09 .187
P6TU6 N6TU6 3/8 13/16 1.30 1.30 .250
P8TU6 N8TU6 1/2 - 3/8 1 1.46 1.39 .250
P8TU8 N8TU8 1/2 1 1.46 1.46 .375
P10TU6 N10TU6 5/8 - 3/8 1-1/8 1.68 1.46 .250
P10TU10 N10TU10 5/8 1-3/16 1.68 1.68 .500

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
