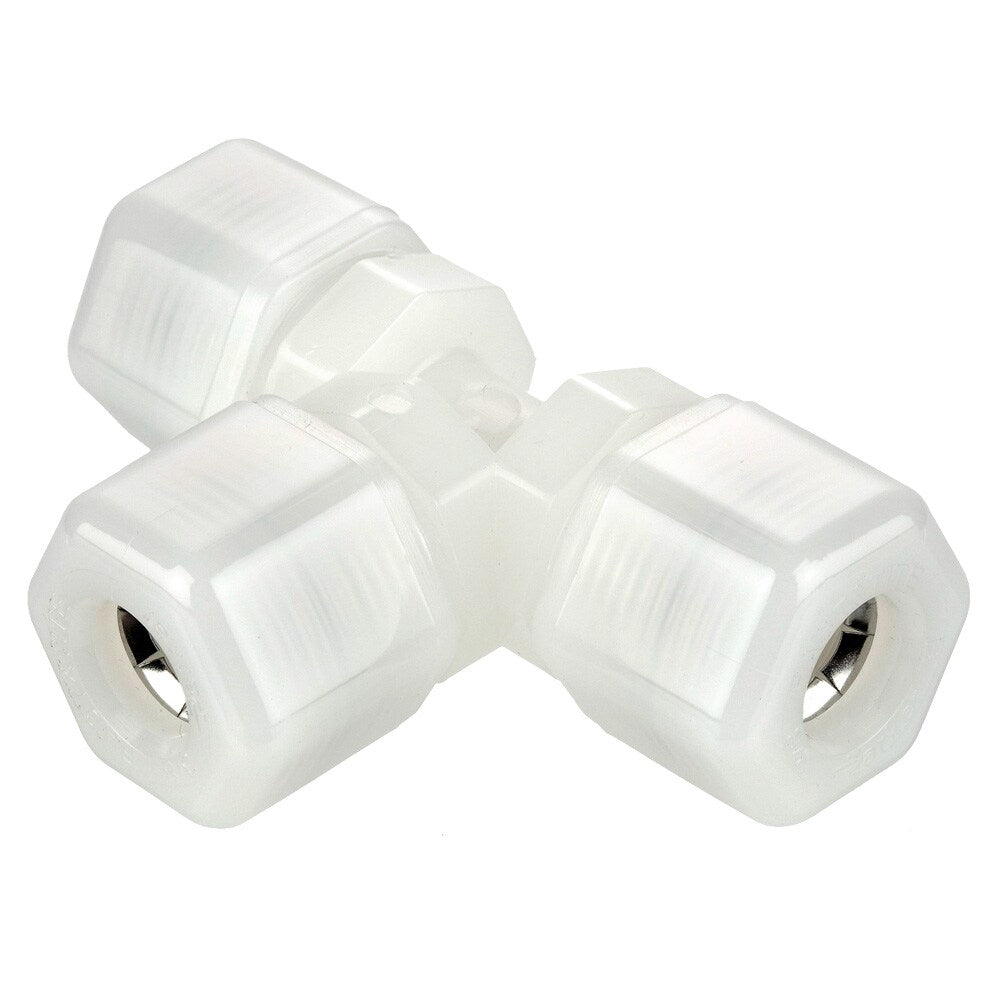

N10TU6 by Parker | Tube to Tube Fitting | 5/8" Tube OD x 3/8" Tube OD | 1-1/8" Hex | 3.36" Length | Tee | Natural | Nylon

N10TU6 by Parker | Tube to Tube Fitting | 5/8" Tube OD x 3/8" Tube OD | 1-1/8" Hex | 3.36" Length | Tee | Natural | Nylon

Sale price$19.85

by Parker Hannifin
Fast & Tite® Fittings:TU - Tee Union
Buy More, Save More!
Quantity Price Each
20–39 $18.66
40–79 $16.87
80+ $14.89
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Fast & Tite®
Series:
  • TU Series
Shape:

Tee
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black PPL Part No. White Nylon Part No. Nom. Tube O.D. C Hex M N Flow Dia. D
P4TU4 N4TU4 1/4 11/16 1.09 1.09 .170
P5TU5 N5TU5 5/16 11/16 1.09 1.09 .187
P6TU6 N6TU6 3/8 13/16 1.30 1.30 .250
P8TU6 N8TU6 1/2 - 3/8 1 1.46 1.39 .250
P8TU8 N8TU8 1/2 1 1.46 1.46 .375
P10TU6 N10TU6 5/8 - 3/8 1-1/8 1.68 1.46 .250
P10TU10 N10TU10 5/8 1-3/16 1.68 1.68 .500
