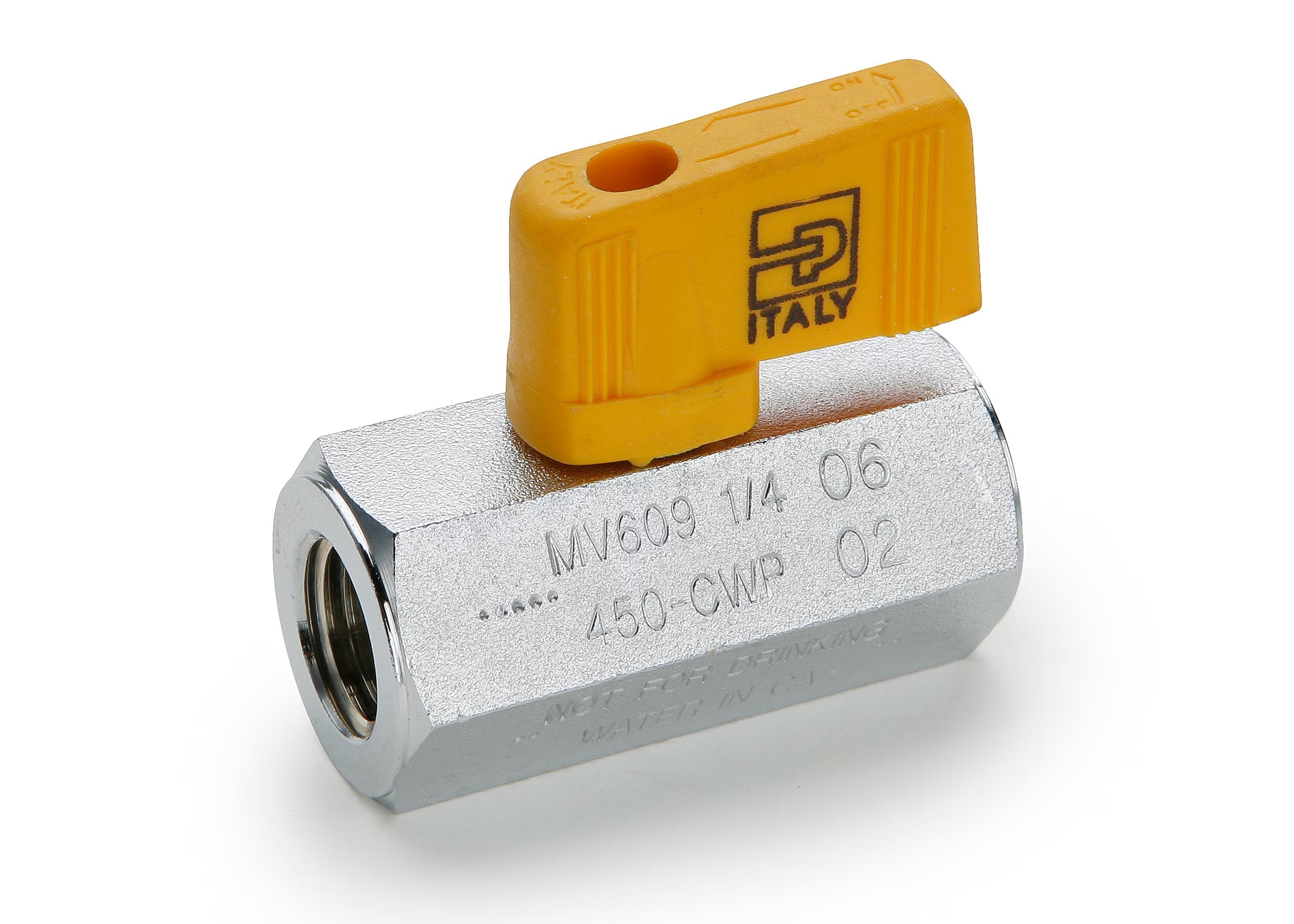

MV609-4 by Parker | Ball Valve | 1/4" Female Pipe Thread | .83" Hex | 1.71" Length | Straight | Chrome Plated Brass | Pack of 10

MV609-4 by Parker | Ball Valve | 1/4" Female Pipe Thread | .83" Hex | 1.71" Length | Straight | Chrome Plated Brass | Pack of 10

Sale price$201.29

by Parker Hannifin
Ball Valves Mini Series 200/608/609:Female Pipe Ends, Compact Handle, Mini Ball Valve MV609

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $189.21
30–59 $171.10
60+ $150.97
Discounts applied in cart/checkout.

Product Data:

Series:
  • MV609 Series
Shape:

Straight

Ends Configuration:
  • 1/4in Female NPT
  • 1/4in Female NPT
  • Some Ends Match
Product Features:
  • Chrome Plated Brass Body
  • Chrome Plated Brass Ball
  • PTFE Seats/Seals
  • Fluorocarbon Stem Seal
  • 608/609 Polyamide Wedge Handle
  • 200 Polyamide Lever Handle
Style:
  • MV-Micro Valve
Type:
  • 608-Male/Female
  • 609-Female/Female
  • 200-Female/Female
  • 21-Oval Handle
Specification:
Temperature Range: 0° to +200° F (-17.7° to +93.3° C)
Pressure Range:
  • MV200: 200 PSI (13.7 bar)
  • MV608/609: Vacuum Service 28 Inches Hg
  • MV608/609: 450 PSI (31.0 bar)
Part Number Pipe Thread Hex (A) B C Flow Diameter (D)
MV609-2 1/8" .83" 1.71" 1.22" .24"
MV609-4 1/4" .83" 1.71" 1.22" .31"
MV609-6 3/8" .83" 1.71" 1.22" .31"
MV609-8 1/2" .98" 2.11" 1.30" .39"
MV609-6-4 3/8" X 1/4" .83" 1.71" 1.22" .31"
