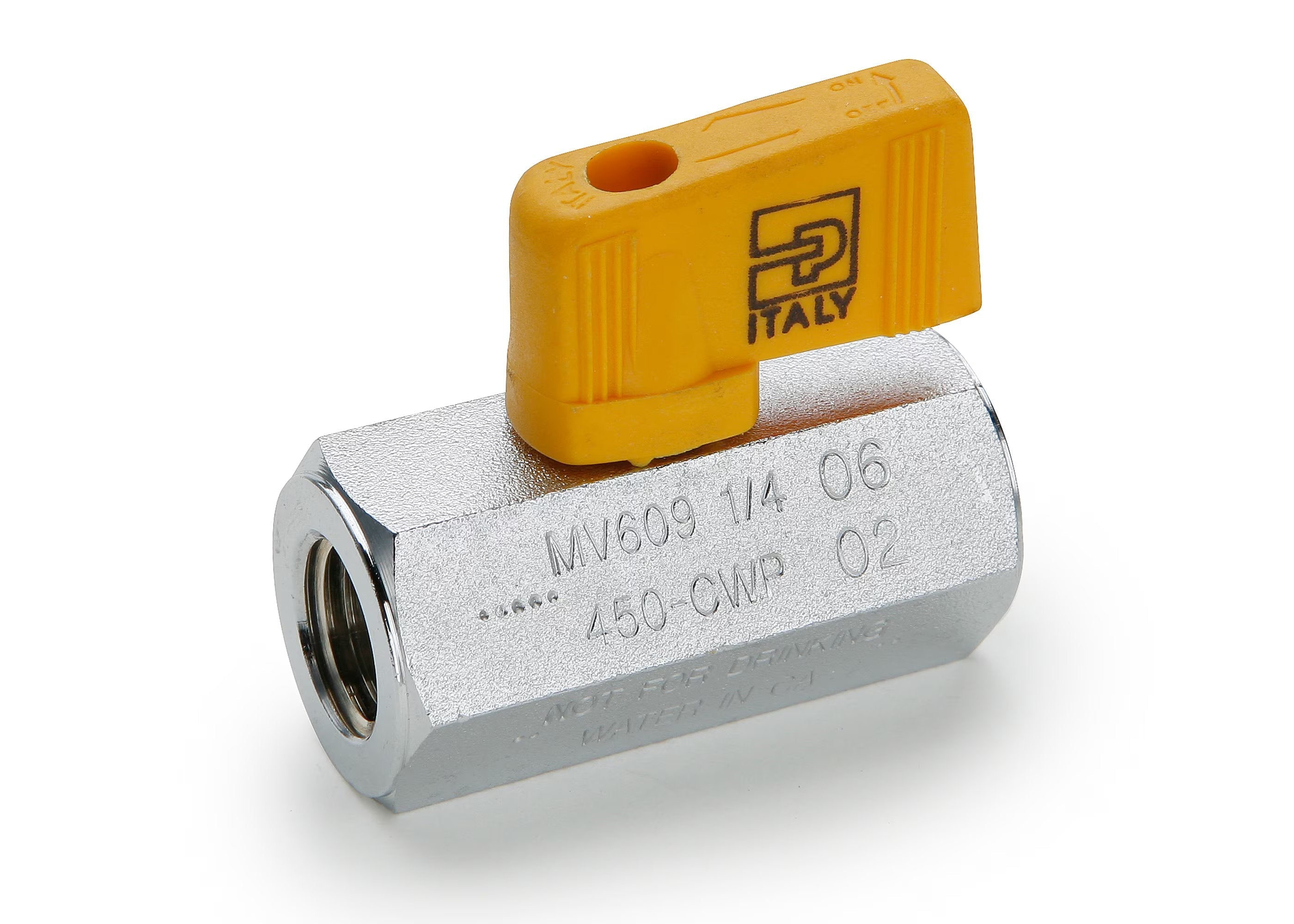

MV609-6-4 by Parker | Ball Valve | 3/8" to 1/4" Female Pipe Thread | .83" Hex | 1.71" Length | Straight | Chrome Plated Brass | Pack of 10

MV609-6-4 by Parker | Ball Valve | 3/8" to 1/4" Female Pipe Thread | .83" Hex | 1.71" Length | Straight | Chrome Plated Brass | Pack of 10

Sale price$295.13

by Parker Hannifin
Ball Valves Mini Series 200/608/609:Female Pipe Ends, Compact Handle, Mini Ball Valve MV609

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
5–14 $277.42
15–29 $250.86
30+ $221.35
Discounts applied in cart/checkout.

Product Data:

Series:
  • MV609 Series
Shape:

Straight

Ends Configuration:
  • 3/8in Female NPT
  • 1/4in Female NPT
Product Features:
  • Chrome Plated Brass Body
  • Chrome Plated Brass Ball
  • PTFE Seats/Seals
  • Fluorocarbon Stem Seal
  • 608/609 Polyamide Wedge Handle
  • 200 Polyamide Lever Handle
Style:
  • MV-Micro Valve
Type:
  • 608-Male/Female
  • 609-Female/Female
  • 200-Female/Female
  • 21-Oval Handle
Specification:
Temperature Range: 0° to +200° F (-17.7° to +93.3° C)
Pressure Range:
  • MV200: 200 PSI (13.7 bar)
  • MV608/609: Vacuum Service 28 Inches Hg
  • MV608/609: 450 PSI (31.0 bar)
Part Number Pipe Thread Hex (A) B C Flow Diameter (D)
MV609-2 1/8" .83" 1.71" 1.22" .24"
MV609-4 1/4" .83" 1.71" 1.22" .31"
MV609-6 3/8" .83" 1.71" 1.22" .31"
MV609-8 1/2" .98" 2.11" 1.30" .39"
MV609-6-4 3/8" X 1/4" .83" 1.71" 1.22" .31"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
