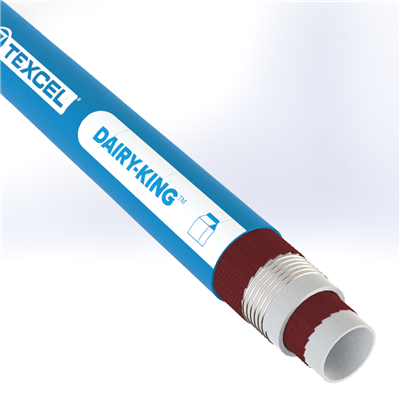

MILK-.75-100 by Texcel | DAIRY-KING™ Series | Milk Hose | 3/4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Blue
Texcel
DAIRY-KING™ Series | Milk Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $18.25 |
| 40–79 | $16.51 |
| 80+ | $14.57 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | DAIRY-KING™ milk hose is specifically designed for the suction and delivery of milk and other fatty foods. The DAIRY-KING™ hose has a white, smooth, NBR rubber tube to ensure product quality, is odorless and does not alter taste. Its blue, smooth, cloth impression EPDM rubber cover offers abrasion-, ozoneand weather-resistance. This hose can be sterilized with steam at 230°F for 30 minutes. Meets FDA title 21 part.177.2600(f) for fatty foods, BfR, ADI free, D.M. 21/03/73, EC 1935 / 2004. Hose conform to 3A standards. | Tube: | White, NBR |
| Cover: | Blue, EPDM | Reinforcement: | High strength synthetic plies with steel helix |
| Safety Factor: | 3:1 | Temperature: | -40°F to +248°F |
| Branding: | TEXCEL® DAIRY-KING™ MILK HOSE 150 PSI (10 BAR) W.P TEMP. -40F TO 248F (-40C TO 120C) STERILIZATION AT 230F FOR 30 MINS FDA BFR ADI FREE | Safety Note: | It is recommended that all food grade hose be thoroughly flushed prior to initial use |
| Features: | FDA, USDA and 3A compliant | ||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./Ft. |
|---|---|---|---|---|---|---|
| MILK-.75-100 | 3/4" | 1-9/64" | 150 psi | 29 | 2.5" | 0.45 lbs |
| MILK-1.0-100 | 1" | 1-24/64" | 150 psi | 29 | 3.5" | 0.54 lbs |
| MILK-1.5-100 | 1-1/2" | 1-62/64" | 150 psi | 29 | 5" | 0.93 lbs |
| MILK-2.0-100 | 2" | 2-32/64" | 150 psi | 29 | 7.5" | 1.26 lbs |
| MILK-3.0-100 | 3" | 3-32/64" | 150 psi | 29 | 11" | 2.02 lbs |
| MILK-4.0-100 | 4" | 4-35/64" | 150 psi | 29 | 13" | 3.09 lbs |
