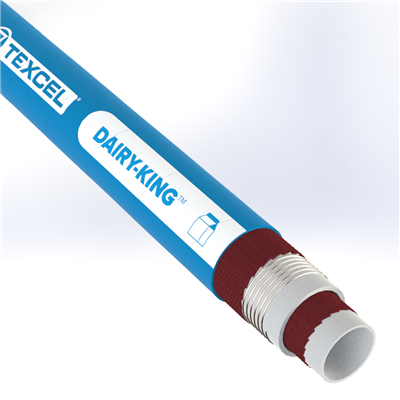

MILK-4.0-100 by Texcel | DAIRY-KING™ Series | Milk Hose | 4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Blue
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
DAIRY-KING™ Milk Hose
Milk hose specifically designed for the suction and delivery of milk and other fatty foods.
1
What is this hose used for?
The white, smooth NBR rubber tube ensures product quality, is odorless and does not alter taste. The blue, smooth, cloth-impression EPDM rubber cover offers abrasion, ozone and weather resistance. The hose can be sterilized with steam at 230°F for 30 minutes, and conforms to 3A standards.
- Milk
- Fatty foods
- Dairy plants
2
What are the key specifications?
White, NBR
Blue, EPDM (smooth, cloth impression)
High strength synthetic plies with steel helix
-40°F to +248°F
3:1
FDA, USDA and 3A compliant
Meets FDA title 21 part 177.2600(f) for fatty foods, BfR, ADI free, D.M. 21/03/73, EC 1935/2004
TEXCEL® DAIRY-KING™ MILK HOSE 150 PSI (10 BAR) W.P TEMP. -40F TO 248F (-40C TO 120C) STERILIZATION AT 230F FOR 30 MINS FDA BFR ADI FREE
3
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|
| MILK-.75-100 | 3/4" | 1-9/64" | 150 | 29 | 2.5" | 0.45 |
| MILK-1.0-100 | 1" | 1-24/64" | 150 | 29 | 3.5" | 0.54 |
| MILK-1.5-100 | 1-1/2" | 1-62/64" | 150 | 29 | 5" | 0.93 |
| MILK-2.0-100 | 2" | 2-32/64" | 150 | 29 | 7.5" | 1.26 |
| MILK-3.0-100 | 3" | 3-32/64" | 150 | 29 | 11" | 2.02 |
| MILK-4.0-100 | 4" | 4-35/64" | 150 | 29 | 13" | 3.09 |
