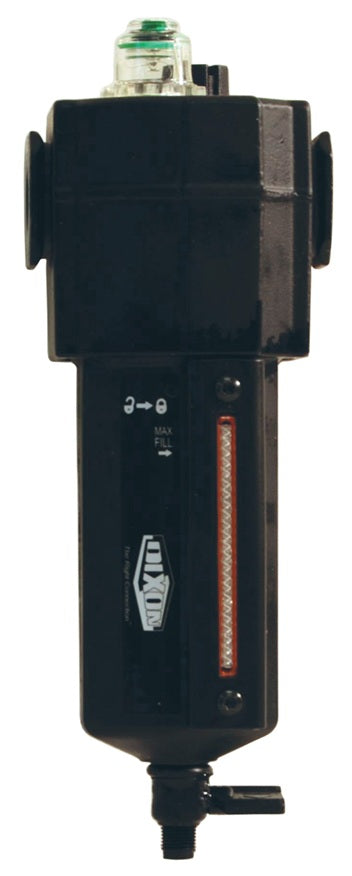

L74C-3MB by Dixon Valve | L74C Series 1 | Standard Oil-Fog Lubricator | 3/8" Port Size | 118 SCFM | 7 oz. Metal Bowl

$176.51

Dixon Valve
L74C Series 1 | Standard Oil-Fog Lubricator

Oil-fog lubricators, identified by a green adjusting screw, are used for lubricating a single air tool or air motor and should be installed as near the device as possible.

- 7 oz. reservoir
- In-line or modular installation

Quantity:

Buy More, Save More!
Quantity	Price Each
5–19	$165.92
20–59	$150.03
60+	$132.38

Discounts applied in cart/checkout.

Product Data:

Series:

L74 Series 1

Features:
All the oil visible dropping through the transparent sight-feed dome goes to the airstream. L72C, L73C, and L74C OIL-FOG lubricators can be filled under pressure. In-line or modular installation. Quick-release bayonet bowl. Can be filled under pressure. 7 oz. reservoir.
Specifications:
Maximum operating conditions: Transparent Bowl: Max Pressure: 150 PSIG (10 bar) Temperature Range: -30°F to 125°F (-34°C to 51°C) Metal Bowl: Max Pressure: 250 PSIG (17 bar) Temperature Range: -30°F to 175°F (-34°C to 80°C) Recommended lubricants: misting type oil rated 50 to 200 SSU (ISO Grade 7 to 46) at 100°F (37°C) SCFM ratings at 90 PSIG inlet pressure
Dimensions:

Transparent Bowl Part Number	Metal Bowl Part Number	Port Size	Flow (SCFM)
L74C-3	L74C-3MB	3/8"	118 SCFM
L74C-4	L74C-4MB	1/2"	192 SCFM
L74C-6	L74C-6MB	3/4"	186 SCFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
