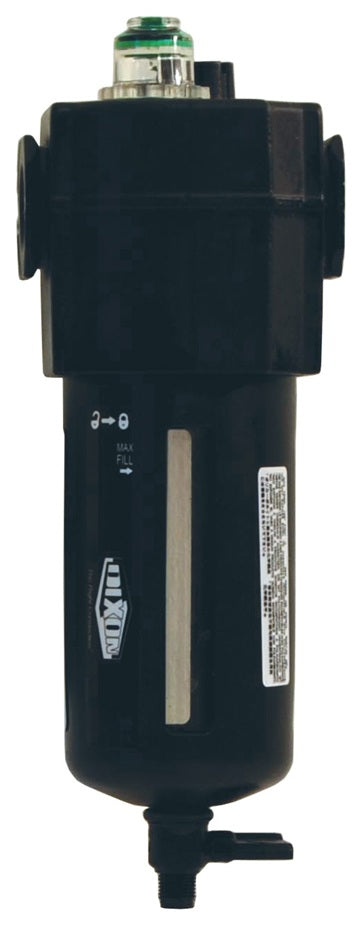

L74C-4 by Dixon Valve | L74C Series 1 | Standard Oil-Fog Lubricator | 1/2" Port Size | 192 SCFM | 7 oz. Transparent Bowl

L74C-4 by Dixon Valve | L74C Series 1 | Standard Oil-Fog Lubricator | 1/2" Port Size | 192 SCFM | 7 oz. Transparent Bowl

Sale price$171.94

Dixon Valve
L74C Series 1 | Standard Oil-Fog Lubricator

Oil-fog lubricators, identified by a green adjusting screw, are used for lubricating a single air tool or air motor and should be installed as near the device as possible.

- 7 oz. reservoir
- In-line or modular installation


In stock
Buy More, Save More!
Quantity Price Each
5–19 $161.62
20–59 $146.15
60+ $128.96
Discounts applied in cart/checkout.

Product Data:

Series:
  • L74 Series 1
Features:
  • All the oil visible dropping through the transparent sight-feed dome goes to the airstream.
  • L72C, L73C, and L74C OIL-FOG lubricators can be filled under pressure.
  • In-line or modular installation.
  • Quick-release bayonet bowl.
  • Can be filled under pressure.
  • 7 oz. reservoir.
Specifications:
  • Maximum operating conditions:
    • Transparent Bowl: Max Pressure: 150 PSIG (10 bar)
      Temperature Range: -30°F to 125°F (-34°C to 51°C)
    • Metal Bowl: Max Pressure: 250 PSIG (17 bar)
      Temperature Range: -30°F to 175°F (-34°C to 80°C)
  • Recommended lubricants: misting type oil rated 50 to 200 SSU (ISO Grade 7 to 46) at 100°F (37°C)
  • SCFM ratings at 90 PSIG inlet pressure
Dimensions:
Transparent Bowl
Part Number		 Metal Bowl
Part Number		 Port Size Flow (SCFM)
L74C-3 L74C-3MB 3/8" 118 SCFM
L74C-4 L74C-4MB 1/2" 192 SCFM
L74C-6 L74C-6MB 3/4" 186 SCFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
