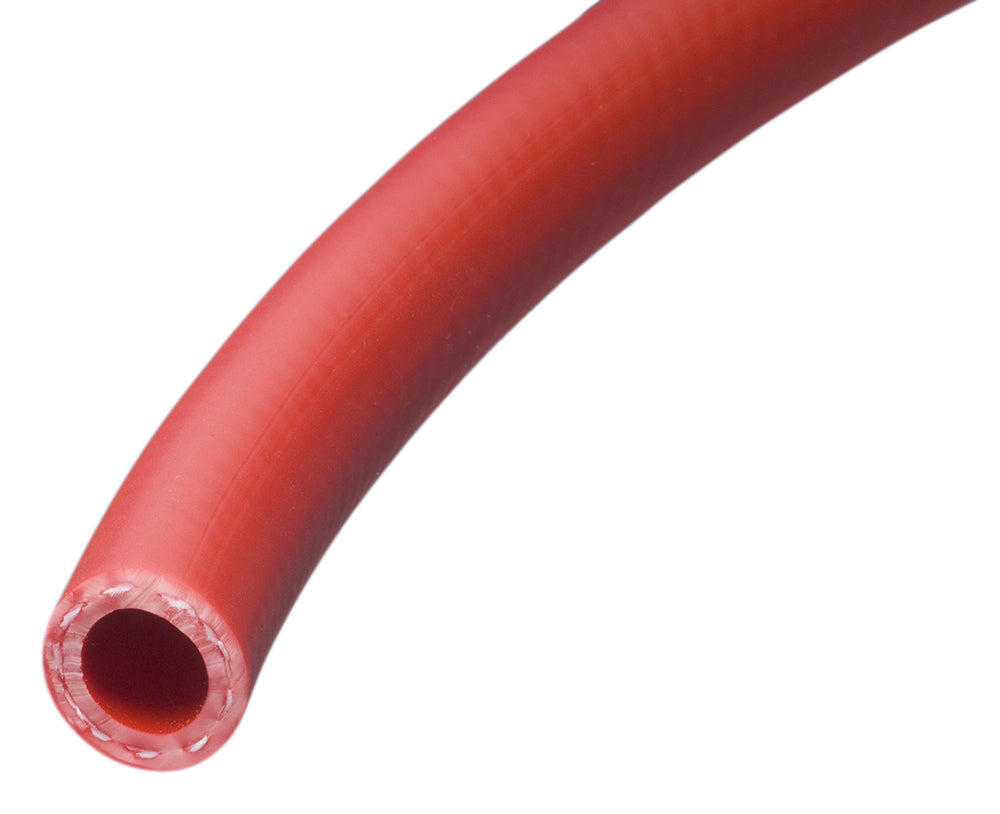

K1234-04X100 Kuri-Tec by Kuriyama | TUNDRA-AIR® | K1234 Series | Reinforced Air & Water Hose | 1/4" ID | .500" OD | Red | 100ft Length

K1234-04X100 Kuri-Tec by Kuriyama | TUNDRA-AIR® | K1234 Series | Reinforced Air & Water Hose | 1/4" ID | .500" OD | Red | 100ft Length

Sale price$105.37

Kuri Tec® by Kuriyama
TUNDRA-AIR® | K1234 Series | Reinforced Air & Water Hose

These hoses, made from specially formulated compounds of high grade PVC resin, are engineered to be tough and flexible at very low temperatures.

The superior physical properties and design of the hose makes it outperform other general purpose PVC and rubber hoses in cold weather air tool applications.

Package Quantity: 100 Foot

In stock
Buy More, Save More!
Quantity Price Each
5–19 $99.05
20–59 $89.56
60+ $79.03
Discounts applied in cart/checkout.

Product Data:

Brand:
  • TUNDRA-AIR
  • Kuri Tec
Series:
  • K1234 Series
Color(s):
  • Red

SPECIFICATIONS

Applications: Outdoor air and water hose for use in cold weather, where flexibility is required.
Ideal for in-plant applications that require very easy handling in tight workspaces.
In-plant freezer applications requiring air or water service.
A versatile, lightweight multi-function hose for air, water, or mild chemical use.
Tube: High grade low temperature PVC compound. Reinforcement: High tensile strength polyester yarn.
Cover: High grade low temperature PVC compound. Pin-pricked. Service Temperature Range: -65°F (-54°C) to +150°F (+65°C)
Specifications: Phthalate Free
RoHS
Other Features:
  • Excellent low temperature flexibility.
  • Extremely easy to handle, even in cold weather where other PVC hoses become stiff.
  • Excellent abrasion resistance.
  • Resilient material avoids permanent deformation caused by stresses.
  • One-piece lengths.
  • Medium oil resistance, complies with APRM's Class B designation
  • Non-marking pin-pricked cover.
  • Light weight.
  • Silicone-free materials.
  • RoHS compliant.
  • Phthalate Free!
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
K1231 Series | Yellow
Part Number
100ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1231-04X100 K1231-04X500 1/4" 6.5mm 0.500" 12.7mm 300 160
K1231-06X100 K1231-06X500 3/8" 9.5mm 0.625" 15.9mm 300 160
K1231-08X100 K1231-08X500 1/2" 12.7mm 0.781" 19.8mm 300 160
K1234 Series | Red
Part Number
100ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1234-04X100 K1234-04X500R 1/4" 6.5mm 0.500" 12.7mm 300 160
K1234-06X100 K1234-06X500R 3/8" 9.5mm 0.625" 15.9mm 300 160
K1234-08X100 K1234-08X500R 1/2" 12.7mm 0.781" 19.8mm 300 160
K1236 Series | Blue
Part Number
100ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1236-04X100 K1236-04X500R 1/4" 6.5mm 0.500" 12.7mm 300 160
K1236-06X100 K1236-06X500R 3/8" 9.5mm 0.625" 15.9mm 300 160
K1236-08X100 K1236-08X500R 1/2" 12.7mm 0.781" 19.8mm 300 160

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
