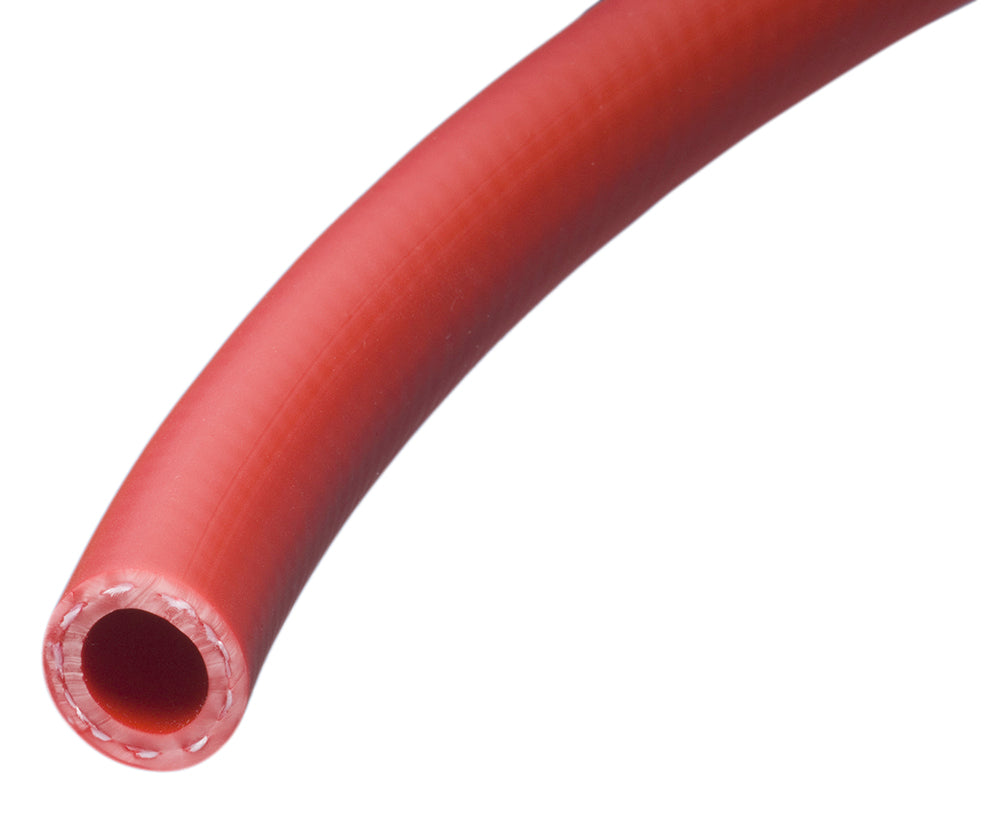

K1234-06X500R Kuri-Tec by Kuriyama | TUNDRA-AIR® | K1234 Series | Reinforced Air & Water Hose | 3/8" ID | .625" OD | Red | 500ft Reel

K1234-06X500R Kuri-Tec by Kuriyama | TUNDRA-AIR® | K1234 Series | Reinforced Air & Water Hose | 3/8" ID | .625" OD | Red | 500ft Reel

Sale price$520.91

Package Quantity: 500 Foot

Buy more, save moreDiscounts applied in cart/checkout.

SPECIFICATIONS

Applications: Outdoor air and water hose for use in cold weather, where flexibility is required.
Ideal for in-plant applications that require very easy handling in tight workspaces.
In-plant freezer applications requiring air or water service.
A versatile, lightweight multi-function hose for air, water, or mild chemical use.
Tube: High grade low temperature PVC compound. Reinforcement: High tensile strength polyester yarn.
Cover: High grade low temperature PVC compound. Pin-pricked. Service Temperature Range: -65°F (-54°C) to +150°F (+65°C)
Specifications: Phthalate Free
RoHS
Other Features:
  • Excellent low temperature flexibility.
  • Extremely easy to handle, even in cold weather where other PVC hoses become stiff.
  • Excellent abrasion resistance.
  • Resilient material avoids permanent deformation caused by stresses.
  • One-piece lengths.
  • Medium oil resistance, complies with APRM's Class B designation
  • Non-marking pin-pricked cover.
  • Light weight.
  • Silicone-free materials.
  • RoHS compliant.
  • Phthalate Free!
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
K1231 Series | Yellow
Part Number
100ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1231-04X100 K1231-04X500 1/4" 6.5mm 0.500" 12.7mm 300 160
K1231-06X100 K1231-06X500 3/8" 9.5mm 0.625" 15.9mm 300 160
K1231-08X100 K1231-08X500 1/2" 12.7mm 0.781" 19.8mm 300 160
K1234 Series | Red
Part Number
100ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1234-04X100 K1234-04X500R 1/4" 6.5mm 0.500" 12.7mm 300 160
K1234-06X100 K1234-06X500R 3/8" 9.5mm 0.625" 15.9mm 300 160
K1234-08X100 K1234-08X500R 1/2" 12.7mm 0.781" 19.8mm 300 160
K1236 Series | Blue
Part Number
100ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
K1236-04X100 K1236-04X500R 1/4" 6.5mm 0.500" 12.7mm 300 160
K1236-06X100 K1236-06X500R 3/8" 9.5mm 0.625" 15.9mm 300 160
K1236-08X100 K1236-08X500R 1/2" 12.7mm 0.781" 19.8mm 300 160

Additional Product Data:

Brand:
  • TUNDRA-AIR
  • Kuri Tec
Series:
  • K1234 Series
Color(s):
  • Red

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
