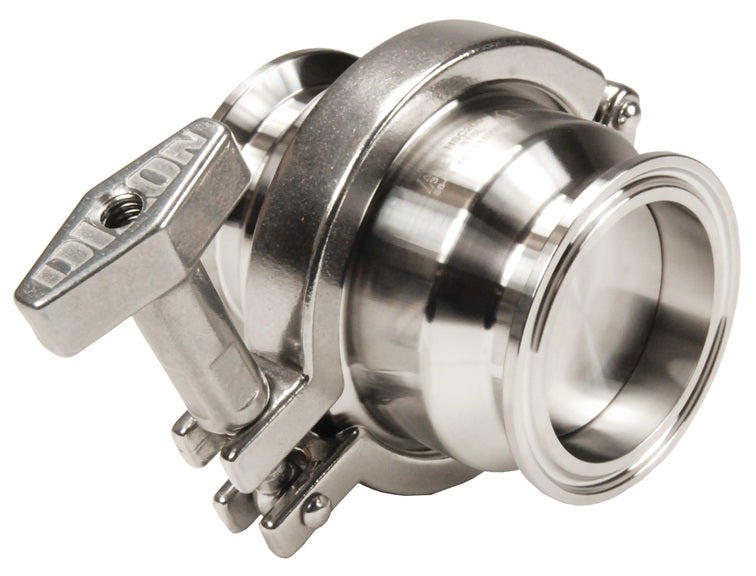

HSCE400 Dixon Valve HSC Spring Check Valve - 4" Clamp Connection - EPDM Gasket - 316L Stainless Steel

HSCE400 Dixon Valve HSC Spring Check Valve - 4" Clamp Connection - EPDM Gasket - 316L Stainless Steel

Sale price$612.46

Dixon Sanitary Fittings HSC Spring Check Valve - Clamp Connection - 316L Stainless Steel

Designed to prevent reverse flow. The concentric design makes them ideal for vertical applications.
Buy More, Save More!
Quantity Price Each
5–14 $575.71
15–29 $520.59
30+ $459.35
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 4in Sanitary Clamp End
  • 4in Sanitary Clamp End
  • Some Ends Match
Material(s):
  • 316L Stainless Steel
Features:
  • Machined from solid bar
  • Standard O-ring (EPDM) and gasket seal design
  • Can be serviced in field (no special tools required)
  • Finish: sanitary polish 32 Ra
  • Temperature Range: 15° F to 200° F
Part Number Size Cracking Pressure Max. Operating Pressure
HSCE050 1/2" 10.0 PSI 145 PSI
HSCE075 3/4" 4.0 PSI 145 PSI
HSCE100 1" 2.5 PSI 145 PSI
HSCE100500
(5" Overall Length)		 1" 2.5 PSI 145 PSI
HSCE150 1-1/2" 1.0 PSI 145 PSI
HSCE150500
(5" Overall Length)		 1-1/2" 1.0 PSI 145 PSI
HSCE200 2" 1.5 PSI 145 PSI
HSCE200500
(5" Overall Length)		 2" 1.5 PSI 145 PSI
HSCE250* 2-1/2" 0.8 PSI 145 PSI
HSCE300* 3" 0.5 PSI 145 PSI
HSCE400* 4" 0.4 PSI 145 PSI

* CF8M (plunger)
