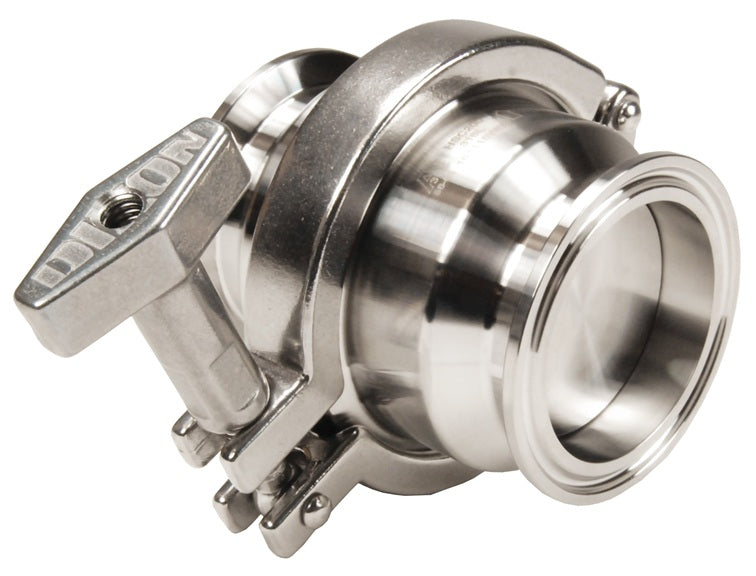

HSCE200500 Dixon Valve HSC Spring Check Valve - 2" Clamp Connection - EPDM Gasket - 316L Stainless Steel (5" Overall Length)
Dixon

HSCE200500 Dixon Valve HSC Spring Check Valve - 2" Clamp Connection - EPDM Gasket - 316L Stainless Steel (5" Overall Length)

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Machined from solid bar
  • Standard O-ring (EPDM) and gasket seal design
  • Can be serviced in field (no special tools required)
  • Finish: sanitary polish 32 Ra
  • Temperature Range: 15° F to 200° F
Part Number Size Cracking Pressure Max. Operating Pressure
HSCE050 1/2" 10.0 PSI 145 PSI
HSCE075 3/4" 4.0 PSI 145 PSI
HSCE100 1" 2.5 PSI 145 PSI
HSCE100500
(5" Overall Length)		 1" 2.5 PSI 145 PSI
HSCE150 1-1/2" 1.0 PSI 145 PSI
HSCE150500
(5" Overall Length)		 1-1/2" 1.0 PSI 145 PSI
HSCE200 2" 1.5 PSI 145 PSI
HSCE200500
(5" Overall Length)		 2" 1.5 PSI 145 PSI
HSCE250* 2-1/2" 0.8 PSI 145 PSI
HSCE300* 3" 0.5 PSI 145 PSI
HSCE400* 4" 0.4 PSI 145 PSI

* CF8M (plunger)
