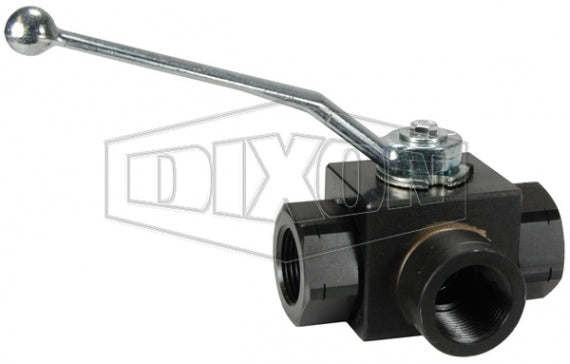

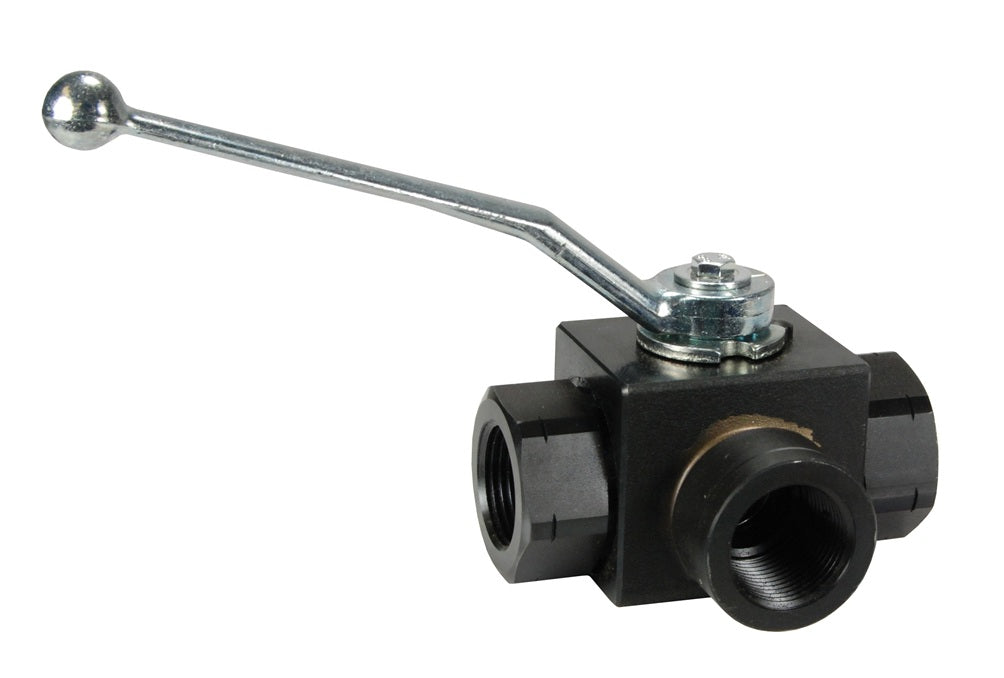

HPBV10-3WAY by Dixon Valve | High Pressure 3-Way Ball Valve | Full Bore | 1" Female NPT x 1" Female NPT x 1" Female NPT | Carbon Steel

HPBV10-3WAY by Dixon Valve | High Pressure 3-Way Ball Valve | Full Bore | 1" Female NPT x 1" Female NPT x 1" Female NPT | Carbon Steel

Sale price$165.34

Dixon Valve & Coupling
High Pressure 3-Way Ball Valve | Full Bore | Carbon Steel
Buy More, Save More!
Quantity Price Each
5–19 $155.42
20–59 $140.54
60+ $124.01
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 1in Female NPT
  • 1in Female NPT
  • 1in Female NPT
  • Some Ends Match
Material(s):
  • Carbon Steel
Features:
  • Rugged construction.
  • Black oxide coating.
Materials:
  • FKM seals.
  • POM (polyacetal) ball seats.
  • Nickel plated ball.
Specifications:
  • Temperature range: -20°F to 215° F (-29°C to 102°C)
Part Number Female NPT PSI
HPBV12-3WAY 1/2" 5145 PSI
HPBV34-3WAY 3/4" 5145 PSI
HPBV10-3WAY 1" 5145 PSI
