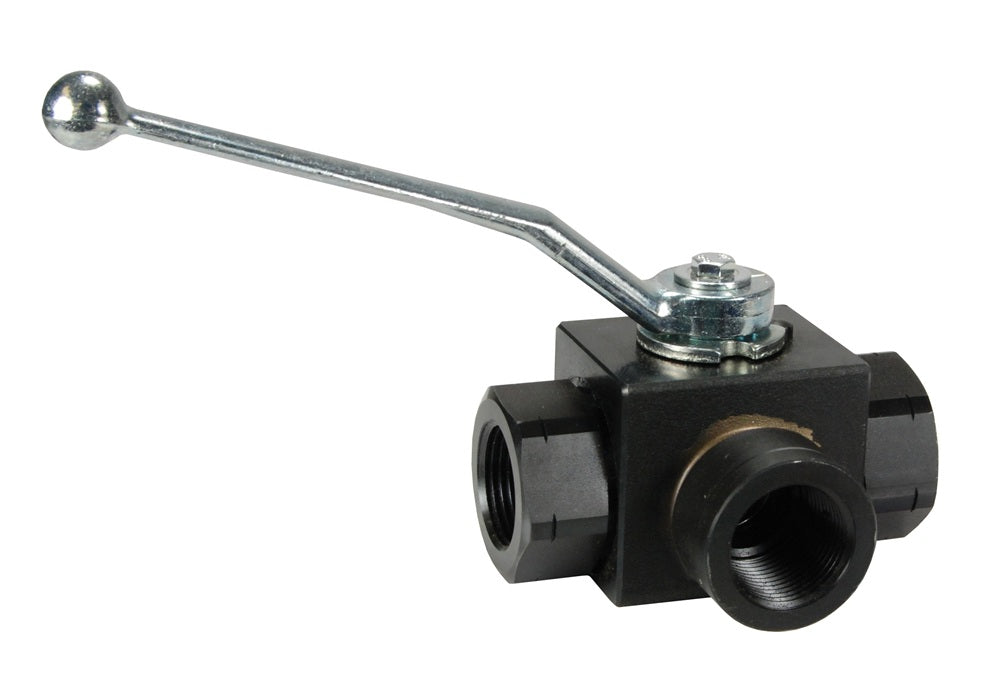

HPBV12-3WAY by Dixon Valve | High Pressure 3-Way Ball Valve | Full Bore | 1/2" Female NPT x 1/2" Female NPT x 1/2" Female NPT | Carbon Steel
Dixon

HPBV12-3WAY by Dixon Valve | High Pressure 3-Way Ball Valve | Full Bore | 1/2" Female NPT x 1/2" Female NPT x 1/2" Female NPT | Carbon Steel

Sale price$152.73

Dixon Valve & Coupling
High Pressure 3-Way Ball Valve | Full Bore | Carbon Steel

Product Data:

Shape:

Tee

Ends Configuration:
  • 1/2in Female NPT
  • 1/2in Female NPT
  • 1/2in Female NPT
  • Some Ends Match
Material(s):
  • Carbon Steel
Features:
  • Rugged construction.
  • Black oxide coating.
Materials:
  • FKM seals.
  • POM (polyacetal) ball seats.
  • Nickel plated ball.
Specifications:
  • Temperature range: -20°F to 215° F (-29°C to 102°C)
Part Number Female NPT PSI
HPBV12-3WAY 1/2" 5145 PSI
HPBV34-3WAY 3/4" 5145 PSI
HPBV10-3WAY 1" 5145 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
