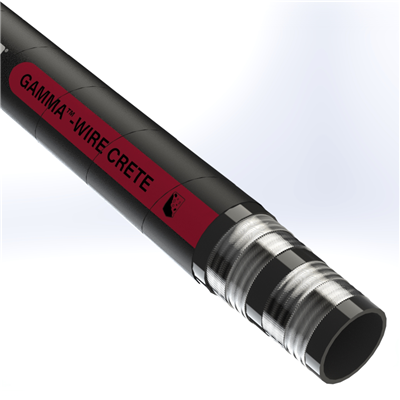

GWC12S1-4.0-100N by Texcel | GAMMA™-WIRE CRETE Series | Wire Concrete Placement Hose | 4" Hose ID | 1450 PSI | Black
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Data: | |||
|---|---|---|---|
| Description: | A heavy-duty hose designed to handle the most abrasive applications and weather conditions. Suitable for handling wet concrete in areas where flex is critical. Ideal for use on high pressure concrete pumps or boom trucks where a tough, durable hose is required for high pressure concrete pumping and placing applications. | Tube: | Black, wear-resistant, GUM/SBR blend |
| Cover: | Black, SBR, cut and gouge-resistant | Reinforcement: | Multiple steel wire plies |
| Safety Factor: | 2:1 (per ASME standards) | Temperature: | -40°F to +200°F |
| Branding: | TEXCEL GAMMA™ SERIES CONCRETE PLACEMENT HOSE – WIRE XX" 1450 PSI (100 BAR) WP XX LBS/FT (F.W.C.) MEETS OR EXCEEDS ASME B30.27-2009 | Features: | Meets ASME B3.27-2009 specifications |
| Part Number | Hose ID | Hose OD | Working Pressure (psi/bar) | Burst Pressure (psi/bar) | Bend Radius | Lbs./Ft. |
|---|---|---|---|---|---|---|
| GWC12S1-2.0-100N | 2" | 2-48/64" | 1450/100 | 2900/200 | 12" | 1.86 lbs |
| GWC12S1-2.5-100N | 2-1/2" | 3-24/64" | 1450/100 | 2900/200 | 16" | 2.67 lbs |
| GWC12S1-3.0-100N | 3" | 3-60/64" | 1450/100 | 2900/200 | 18" | 3.37 lbs |
| GWC12S1-4.0-100N | 4" | 5-4/64" | 1450/100 | 2900/200 | 24" | 5.31 lbs |
| GWC12S1-5.0-50N | 5" | 6-8/64" | 1450/100 | 2900/200 | 30" | 6.57 lbs |
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
