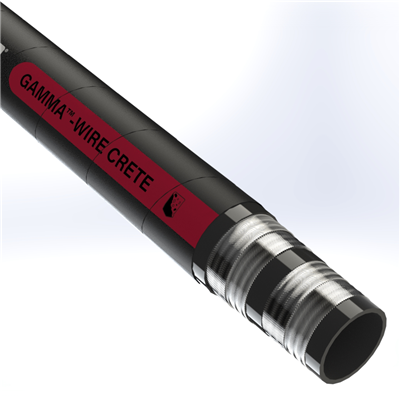

GWC12S1-2.5-100N by Texcel | GAMMA™-WIRE CRETE Series | Wire Concrete Placement Hose | 2-1/2" Hose ID | 1450 PSI | Black
GAMMA™ by Texcel
WIRE CRETE Series | Wire Concrete Placement Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $47.53 |
| 40–79 | $42.98 |
| 80+ | $37.92 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | A heavy-duty hose designed to handle the most abrasive applications and weather conditions. Suitable for handling wet concrete in areas where flex is critical. Ideal for use on high pressure concrete pumps or boom trucks where a tough, durable hose is required for high pressure concrete pumping and placing applications. | Tube: | Black, wear-resistant, GUM/SBR blend |
| Cover: | Black, SBR, cut and gouge-resistant | Reinforcement: | Multiple steel wire plies |
| Safety Factor: | 2:1 (per ASME standards) | Temperature: | -40°F to +200°F |
| Branding: | TEXCEL GAMMA™ SERIES CONCRETE PLACEMENT HOSE – WIRE XX" 1450 PSI (100 BAR) WP XX LBS/FT (F.W.C.) MEETS OR EXCEEDS ASME B30.27-2009 | Features: | Meets ASME B3.27-2009 specifications |
| Part Number | Hose ID | Hose OD | Working Pressure (psi/bar) | Burst Pressure (psi/bar) | Bend Radius | Lbs./Ft. |
|---|---|---|---|---|---|---|
| GWC12S1-2.0-100N | 2" | 2-48/64" | 1450/100 | 2900/200 | 12" | 1.86 lbs |
| GWC12S1-2.5-100N | 2-1/2" | 3-24/64" | 1450/100 | 2900/200 | 16" | 2.67 lbs |
| GWC12S1-3.0-100N | 3" | 3-60/64" | 1450/100 | 2900/200 | 18" | 3.37 lbs |
| GWC12S1-4.0-100N | 4" | 5-4/64" | 1450/100 | 2900/200 | 24" | 5.31 lbs |
| GWC12S1-5.0-50N | 5" | 6-8/64" | 1450/100 | 2900/200 | 30" | 6.57 lbs |
