GWC12S1-3.0-100N by Texcel | GAMMA™-WIRE CRETE Series | Wire Concrete Placement Hose | 3" Hose ID | 1450 PSI | Black
Buy more, save moreDiscounts applied in cart/checkout.
Material Handling Hose

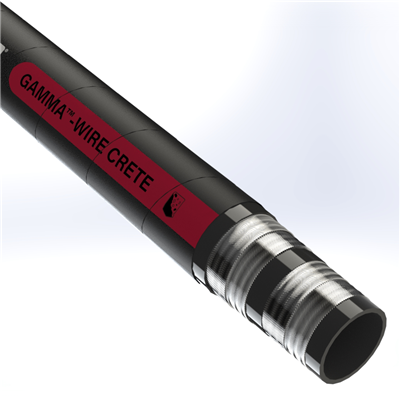

GAMMA™-WIRE CRETE Wire Concrete Placement Hose
A heavy-duty hose designed to handle the most abrasive applications and weather conditions.
1
What is this hose used for?
Suitable for handling wet concrete in areas where flex is critical. Ideal for use on high pressure concrete pumps or boom trucks where a tough, durable hose is required for high pressure concrete pumping and placing applications.
- Wet concrete
- High pressure concrete pumps
- Boom trucks
- Concrete placement
2
What are the key specifications?
Tube
Black, wear-resistant GUM/SBR blend
Cover
Black, SBR, cut- and gouge-resistant
Reinforcement
Multiple steel wire plies
Temperature Range
-40°F to +200°F
Safety Factor
2:1 (per ASME standards)
Working Pressure
1,450 psi (100 bar)
Standards
Meets ASME B30.27-2009 specifications
Branding
TEXCEL GAMMA™ SERIES CONCRETE PLACEMENT HOSE – WIRE XX" 1450 PSI (100 BAR) WP XX LBS/FT (F.W.C.) MEETS OR EXCEEDS ASME B30.27-2009
3
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (psi / bar) | Burst Pressure (psi / bar) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|
| GWC12S1-2.0-100N | 2" | 2-48/64" | 1450/100 | 2900/200 | 12" | 1.86 |
| GWC12S1-2.5-100N | 2-1/2" | 3-24/64" | 1450/100 | 2900/200 | 16" | 2.67 |
| GWC12S1-3.0-100N | 3" | 3-60/64" | 1450/100 | 2900/200 | 18" | 3.37 |
| GWC12S1-4.0-100N | 4" | 5-4/64" | 1450/100 | 2900/200 | 24" | 5.31 |
| GWC12S1-5.0-50N | 5" | 6-8/64" | 1450/100 | 2900/200 | 30" | 6.57 |
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
