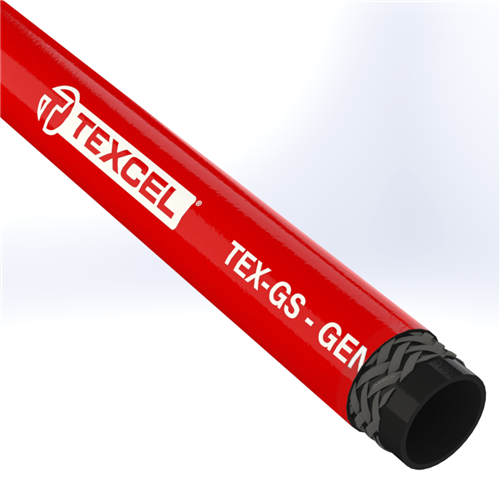

GS-4-R300-600R by Texcel | TEX-GS Series | General Service Air & Water Hose | 1/4" Hose ID | 300 PSI | Red | 600ft Reel
Texcel
TEX-GS Series | General Service Air & Water Hose
Package Quantity: 600 Feet
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $686.18 |
| 15–29 | $620.48 |
| 30+ | $547.49 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | A tough, heavy-duty, abrasion and ozone-resistant general service hose. Designed for the transfer of air, mild chemicals and water across multiple applications. The ability to order this product in continuous lengths provides efficiently in inventory controls as well as ease of handling at job sites. | Tube: | Black, EPDM |
| Cover: | Red, SBR/EPDM | Reinforcement: | One or two braided polyester cords |
| Safety Factor: | 3:1 | Temperature: | -20°F to +180°F |
| Branding: | TEXCEL® TEX-GS - GENERAL SERVICE AIR AND WATER - XXXPSI WP-LOT (white letters) | Packaging: | Coils are continuous lengths |
| Part Number | Package Type | Hose ID | Hose OD | Std. Length | Working Pressure (psi) | Lbs./Ft |
|---|---|---|---|---|---|---|
| GS-4-R300-600R | Reel | 1/4" | 33/64" | 600' | 300 | 0.12 lbs |
| GS-4-C300-200R | Coil | 1/4" | 33/64" | 200' | 300 | 0.12 lbs |
| GS-5-R300-600R | Reel | 5/16" | 38/64" | 600' | 300 | 0.15 lbs |
| GS-6-R300-600R | Reel | 3/8" | 43/64" | 600' | 300 | 0.19 lbs |
| GS-6-C300-200R | Coil | 3/8" | 43/64" | 200' | 300 | 0.19 lbs |
| GS-8-R300-600R | Reel | 1/2" | 53/64" | 600' | 300 | 0.26 lbs |
| GS-8-C300-200R | Coil | 1/2" | 53/64" | 200' | 300 | 0.26 lbs |
| GS-10-R300-600R | Reel | 5/8" | 63/64" | 600' | 300 | 0.33 lbs |
| GS-12-R300-600R | Reel | 3/4" | 1-9/64" | 600' | 300 | 0.45 lbs |
| GS-12-R300-BL | Reel | 3/4" | 1-9/64" | - | 300 | 0.45 lbs |
| GS-12-C300-50R-BL | Coil | 3/4" | 1-9/64" | - | 300 | 0.45 lbs |
| GS-12-C300 | Coil | 3/4" | 1-9/64" | - | 300 | 0.45 lbs |
| GS-16-R300-400R | Reel | 1" | 1-27/64" | 400' | 300 | 0.90 lbs |
| GS-16-C300-50R | Coil | 1" | 1-27/64" | 50' | 300 | 0.90 lbs |
| GS-20-R300-300R | Reel | 1-1/4" | 1-47/64" | 300' | 300 | 1.08 lbs |
| GS-24-R300-250R | Reel | 1-1/2" | 2-8/64" | 250' | 300 | 1.37 lbs |
| GS-32-R300-200R | Reel | 2" | 2-38/64" | 200' | 300 | 1.61 lbs |
