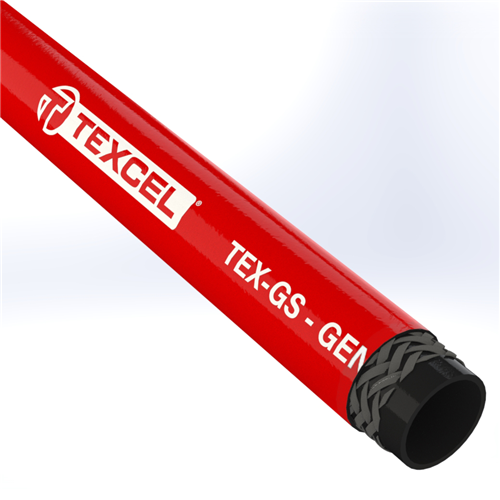

GS-12-R300-600R by Texcel | TEX-GS Series | General Service Air & Water Hose | 3/4" Hose ID | 300 PSI | Red | 600ft Reel
Package Quantity: 600 Feet
Buy more, save moreDiscounts applied in cart/checkout.
Air & Multipurpose Hose
TEX-GS General Service Air & Water Hose
A tough, heavy-duty, abrasion- and ozone-resistant general service hose.
1
What is this hose used for?
Designed for the transfer of air, mild chemicals and water across multiple applications. Ordering in continuous lengths provides efficiency in inventory control as well as ease of handling at job sites.
- Air
- Mild chemicals
- Water
2
What are the key specifications?
Tube
Black, EPDM
Cover
Red (blue on -BL part numbers), SBR/EPDM
Reinforcement
One or two braided polyester cords
Temperature Range
-20°F to +180°F
Safety Factor
3:1
Working Pressure
300 psi
Packaging
Coils are continuous lengths
Branding
TEXCEL® TEX-GS - GENERAL SERVICE AIR AND WATER - XXXPSI WP - LOT (white letters)
3
Which sizes are available?
| Part Number | Package | Cover | Hose ID | Hose OD | Std. Length | Working Pressure (psi) | Weight (lbs/ft) |
|---|---|---|---|---|---|---|---|
| GS-4-R300-600R | Reel | Red | 1/4" | 33/64" | 600' | 300 | 0.12 |
| GS-4-C300-200R | Coil | Red | 1/4" | 33/64" | 200' | 300 | 0.12 |
| GS-5-R300-600R | Reel | Red | 5/16" | 38/64" | 600' | 300 | 0.15 |
| GS-6-R300-600R | Reel | Red | 3/8" | 43/64" | 600' | 300 | 0.19 |
| GS-6-C300-200R | Coil | Red | 3/8" | 43/64" | 200' | 300 | 0.19 |
| GS-8-R300-600R | Reel | Red | 1/2" | 53/64" | 600' | 300 | 0.26 |
| GS-8-C300-200R | Coil | Red | 1/2" | 53/64" | 200' | 300 | 0.26 |
| GS-10-R300-600R | Reel | Red | 5/8" | 63/64" | 600' | 300 | 0.33 |
| GS-12-R300-600R | Reel | Red | 3/4" | 1-9/64" | 600' | 300 | 0.45 |
| GS-12-R300-600R-BL | Reel | Blue | 3/4" | 1-9/64" | — | 300 | 0.45 |
| GS-12-C300-50R-BL | Coil | Blue | 3/4" | 1-9/64" | — | 300 | 0.45 |
| GS-12-C300-200R | Coil | Red | 3/4" | 1-9/64" | — | 300 | 0.45 |
| GS-16-R300-400R | Reel | Red | 1" | 1-27/64" | 400' | 300 | 0.90 |
| GS-16-C300-50R | Coil | Red | 1" | 1-27/64" | 50' | 300 | 0.90 |
| GS-20-R300-300R | Reel | Red | 1-1/4" | 1-47/64" | 300' | 300 | 1.08 |
| GS-24-R300-250R | Reel | Red | 1-1/2" | 2-8/64" | 250' | 300 | 1.37 |
| GS-32-R300-200R | Reel | Red | 2" | 2-38/64" | 200' | 300 | 1.61 |
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
