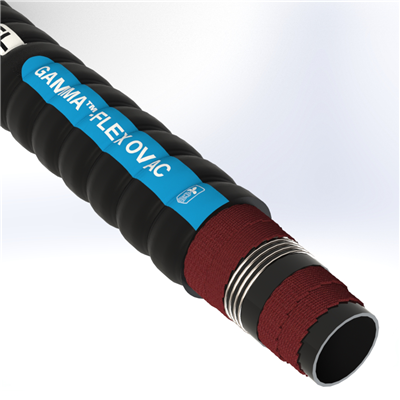

GOV15F1-6.0-100 by Texcel | GAMMA™-FLEX OVAC Series | Corrugated Oilfield Suction Hose | 6" Hose ID | 150 PSI | Black
GAMMA™ by Texcel
FLEX OVAC Series | Corrugated Oilfield Suction Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $67.79 |
| 40–79 | $61.30 |
| 80+ | $54.09 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | Texcel’s exclusive design for rugged oilfield service where full suction and working pressures are required. Corrugated cover for improved flexibility | Tube: | Black, specially compounded elastomer; low oil swell |
| Cover: | Black, SBR/Nitrile blend compounded for oil and ozone resistance (corrugated) | Reinforcement: | High tensile tire cord plies; dual helix wire |
| Safety Factor: | 4:1 | Temperature: | -20°F to +180°F |
| Branding: | TEXCEL® GAMMA™-FLEX OVAC - FLEXIBLE OILFIELD SUCTION HOSE NOT FOR REFINED FUELS 150 PSI W.P. | Safety Note: | Not recommended for refined petroleum products |
| Features: | Exceptional flexibility | ||
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in./HG) | Bend Radius | Lbs./ft |
|---|---|---|---|---|---|---|
| GOV15F1-2.0-100 | 2" | 2-30/64" | 150 psi | 29 in./HG | 2" | 1.05 lbs |
| GOV15F1-3.0-100 | 3" | 3-32/64" | 150 psi | 29 in./HG | 3" | 1.64 lbs |
| GOV15F1-4.0-100 | 4" | 4-36/64" | 150 psi | 29 in./HG | 4" | 2.58 lbs |
| GOV15F1-6.0-100 | 6" | 6-51/64" | 150 psi | 29 in./HG | 8" | 4.75 lbs |
