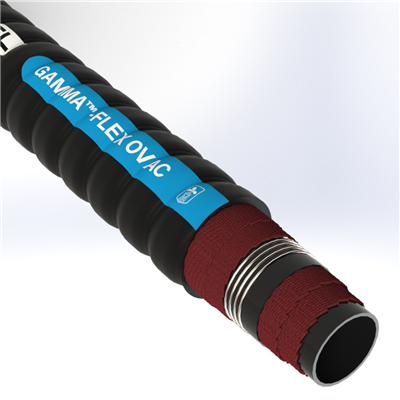

GOV15F1-2.0-100 by Texcel | GAMMA™-FLEX OVAC Series | Corrugated Oilfield Suction Hose | 2" Hose ID | 150 PSI | Black
Buy more, save moreDiscounts applied in cart/checkout.
Petroleum Hose
GAMMA™-FLEX OVAC Corrugated Oilfield Suction Hose
Texcel's exclusive design for rugged oilfield service where full suction and working pressures are required, with a corrugated cover for improved flexibility.
1
What is this hose used for?
- Oilfield suction
- Oilfield pressure service
⚠ CAUTION: Not recommended for refined petroleum products.
2
What are the key specifications?
Tube
Black, specially compounded elastomer; low oil swell
Cover
Black, SBR/nitrile blend compounded for oil and ozone resistance (corrugated)
Reinforcement
High tensile tire cord plies; dual helix wire
Temperature Range
-20°F to +180°F
Safety Factor
4:1
Branding
TEXCEL® GAMMA™-FLEX OVAC - FLEXIBLE OILFIELD SUCTION HOSE NOT FOR REFINED FUELS 150 PSI W.P.
3
What are the main product features?
- Exceptional flexibility — corrugated cover.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|
| GOV15F1-2.0-100 | 2" | 2-30/64" | 150 | 29 | 2" | 1.05 |
| GOV15F1-3.0-100 | 3" | 3-32/64" | 150 | 29 | 3" | 1.64 |
| GOV15F1-4.0-100 | 4" | 4-36/64" | 150 | 29 | 4" | 2.58 |
| GOV15F1-6.0-100 | 6" | 6-51/64" | 150 | 29 | 8" | 4.75 |
