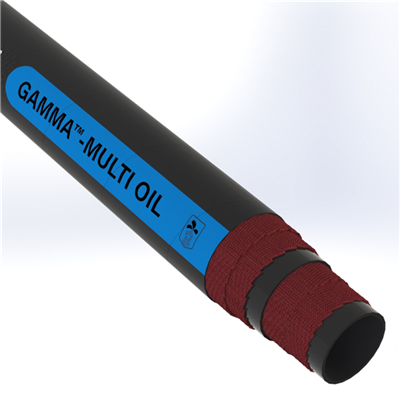

GMO50S1-4.0-200N by Texcel | GAMMA™-MULTI OIL Series | 8-ply Multi-Purpose Discharge Hose | 4" Hose ID | 500 PSI | Black
Buy more, save moreDiscounts applied in cart/checkout.
Petroleum Hose
GAMMA™-MULTI OIL Multipurpose Discharge Hose
This heavy-duty discharge hose can be used in a variety of applications in severe conditions.
1
What is this hose used for?
- Oil waste
- Drilling muds
- High pressure water
- Fracturing
2
What are the key specifications?
Tube
Black, fuel- and oil-resistant NBR compound
Cover
Black, oil-, weather- and abrasion-resistant NR/SBR compound
Reinforcement
High tensile tire cord plies; static wire
Temperature Range
-30°F to +180°F
Safety Factor
4:1
Branding
TEXCEL® GAMMA™-MULTI OIL - BLENDER / MULTIPURPOSE DISCHARGE HOSE 500 PSI W.P.
3
Which sizes are available?
| Part Number | Hose ID | Hose OD | Plies | Working Pressure (psi) | Weight (lbs/ft) |
|---|---|---|---|---|---|
| GMO50S1-2.0-200N | 2" | 2-36/64" | 4 | 500 | 1.22 |
| GMO50S1-3.0-200N | 3" | 3-43/64" | 6 | 500 | 2.15 |
| GMO50S1-4.0-200N | 4" | 4-50/64" | 8 | 500 | 3.31 |
| GMO50S1-5.0-200N | 5" | 5-52/64" | 8 | 500 | 4.97 |
Additional Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
