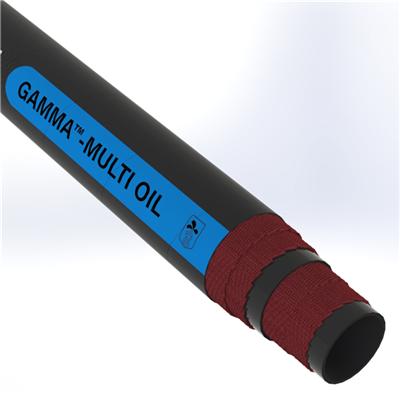

GMO50S1-2.0-200N by Texcel | GAMMA™-MULTI OIL Series | 4-ply Multi-Purpose Discharge Hose | 2" Hose ID | 500 PSI | Black
GAMMA™ by Texcel
MULTI OIL Series | 500psi Multi-Purpose Discharge Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $29.54 |
| 40–79 | $26.72 |
| 80+ | $23.57 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | This heavy-duty discharge hose can be used in a variety of applications in severe conditions such as oil waste, drilling muds, high pressure water or fracturing. | Tube: | Black, fuel and oil-resistant, NBR compound |
| Cover: | Black, oil, weather and abrasion-resistant NR/SBR compound | Reinforcement: | High tensile tire cord plies; static wire |
| Safety Factor: | 4:1 | Temperature: | -30°F to +180°F |
| Branding: | TEXCEL® GAMMA™-MULTI OIL - BLENDER / MULTIPURPOSE DISCHARGE HOSE 500 PSI W.P. | ||
| Part Number | Hose ID | Hose OD | Plies | Working Pressure (psi) | Lbs./ft |
|---|---|---|---|---|---|
| GMO50S1-2.0-200N | 2" | 2-36/64" | 4 | 500 psi | 1.22 lbs |
| GMO50S1-3.0-200N | 3" | 3-43/64" | 6 | 500 psi | 2.15 lbs |
| GMO50S1-4.0-200N | 2" | 4-50/64" | 8 | 500 psi | 3.31 lbs |
| GMO50S1-5.0-200N | 5" | 5-52/64" | 8 | 500 psi | 4.97 lbs |
