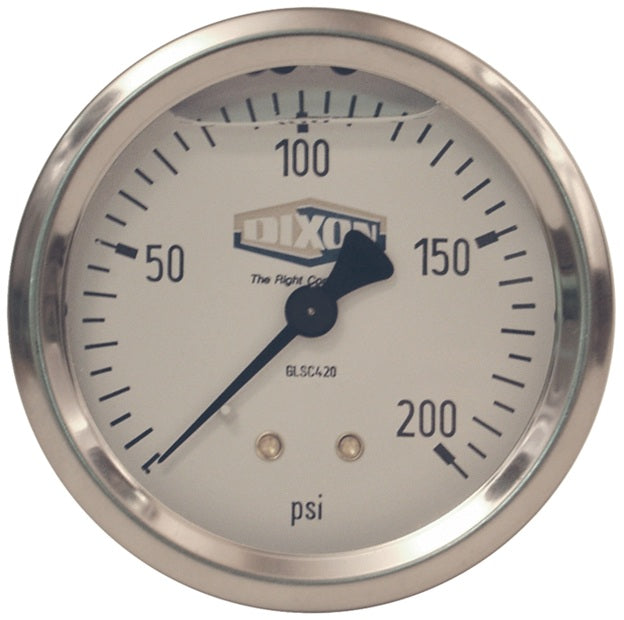

GLSC420 by Dixon Valve | Liquid Filled Gauge | Center Back Mount | 2-1/2" Face | 1/4" Center Back Mount | 0-200 PSI Range | Stainless Steel Case

GLSC420 by Dixon Valve | Liquid Filled Gauge | Center Back Mount | 2-1/2" Face | 1/4" Center Back Mount | 0-200 PSI Range | Stainless Steel Case

Sale price$39.23
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • PowerFlex™ movement with polyester segment designed to resist the effects of shock, vibration, and pulsation.
  • ASME B40.100, Grade A (± 2-1-2% accuracy).
  • 1/4" NPT brass connection.
Materials:
  • Bourdon tube: copper alloy
  • Dial: White aluminum with black numbers
  • Pointer: black aluminum
  • Glycerin filled
  • Window: polycarbonate
Specifications:
  • Temperature range: 20°F to 158°F (-7°C to 70°C)
Term Meanings:
  • Figure Interval: Figure Interval (Increments between PSI numbers on gauge face).
  • Gradient Interval: Graduation Interval (Fractional increments between PSI numbers on gauge face).
2-1/2" Face
1/4" Center Back Mount
Part Number		 2-1/2" Face
1/4" Lower Mount
Part Number		 PSI Range Figure
Interval 		Minor
Gradient
GLSC400 GLS400 0-15 PSI 3 0.5
GLSC405 GLS405 0-30 PSI 5 0.5
GLSC410 GLS410 0-60 PSI 10 1
GLSC415 GLS415 0-100 PSI 20 2
GLSC417 GLS417 0-160 PSI 20 2
GLSC420 GLS420 0-200 PSI 40 5
GLSC425 GLS425 0-300 PSI 50 5
GLSC427 GLS427 0-400 PSI 50 5
GLSC430 GLS430 0-600 PSI 100 10
GLSC435 GLS435 0-1000 PSI 200 10
GLSC440 GLS440 0-1500 PSI 300 50
GLSC445 GLS445 0-2000 PSI 400 20
GLSC450 GLS450 0-3000 PSI 500 50
GLSC455 GLS455 0-5000 PSI 1000 100

Additional Product Data:

Series:
  • GLSC Series

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
