GLSC415 by Dixon Valve | Liquid Filled Gauge | Center Back Mount | 2-1/2" Face | 1/4" Center Back Mount | 0-100 PSI Range | Stainless Steel Case

GLSC415 by Dixon Valve | Liquid Filled Gauge | Center Back Mount | 2-1/2" Face | 1/4" Center Back Mount | 0-100 PSI Range | Stainless Steel Case

Sale price$39.25

Dixon Valve

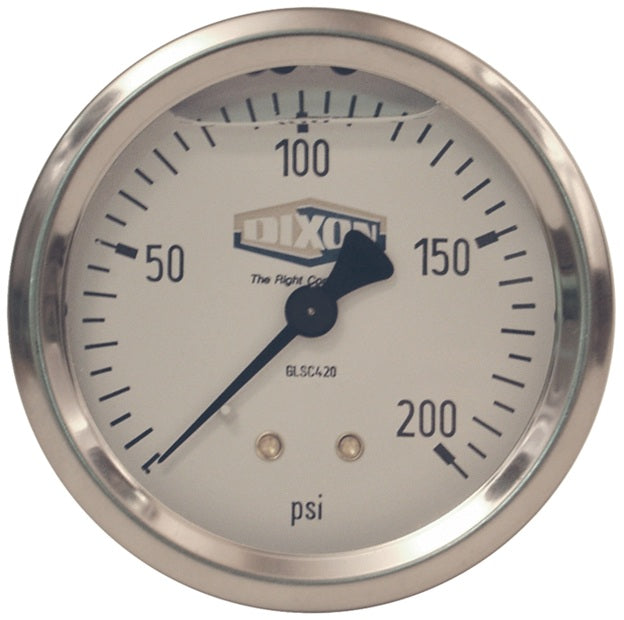

Dixon® Gauge | Liquid Filled Gauge with Stainless Case | Center Back Mount

Designed for long, reliable service under rugged conditions.

Typical applications include those on pumps, hydraulic and pneumatic systems, compressors, machine tools and many other installations where it is necessary to have a gauge with a non-corrosive movement.
Buy More, Save More!
Quantity Price Each
10–39 $36.90
40–79 $33.36
80+ $29.44
Discounts applied in cart/checkout.

Product Data:

Series:
  • GLSC Series
Features:
  • PowerFlex™ movement with polyester segment designed to resist the effects of shock, vibration, and pulsation.
  • ASME B40.100, Grade A (± 2-1-2% accuracy).
  • 1/4" NPT brass connection.
Materials:
  • Bourdon tube: copper alloy
  • Dial: White aluminum with black numbers
  • Pointer: black aluminum
  • Glycerin filled
  • Window: polycarbonate
Specifications:
  • Temperature range: 20°F to 158°F (-7°C to 70°C)
Term Meanings:
  • Figure Interval: Figure Interval (Increments between PSI numbers on gauge face).
  • Gradient Interval: Graduation Interval (Fractional increments between PSI numbers on gauge face).
2-1/2" Face
1/4" Center Back Mount
Part Number		 2-1/2" Face
1/4" Lower Mount
Part Number		 PSI Range Figure
Interval 		Minor
Gradient
GLSC400 GLS400 0-15 PSI 3 0.5
GLSC405 GLS405 0-30 PSI 5 0.5
GLSC410 GLS410 0-60 PSI 10 1
GLSC415 GLS415 0-100 PSI 20 2
GLSC417 GLS417 0-160 PSI 20 2
GLSC420 GLS420 0-200 PSI 40 5
GLSC425 GLS425 0-300 PSI 50 5
GLSC427 GLS427 0-400 PSI 50 5
GLSC430 GLS430 0-600 PSI 100 10
GLSC435 GLS435 0-1000 PSI 200 10
GLSC440 GLS440 0-1500 PSI 300 50
GLSC445 GLS445 0-2000 PSI 400 20
GLSC450 GLS450 0-3000 PSI 500 50
GLSC455 GLS455 0-5000 PSI 1000 100
