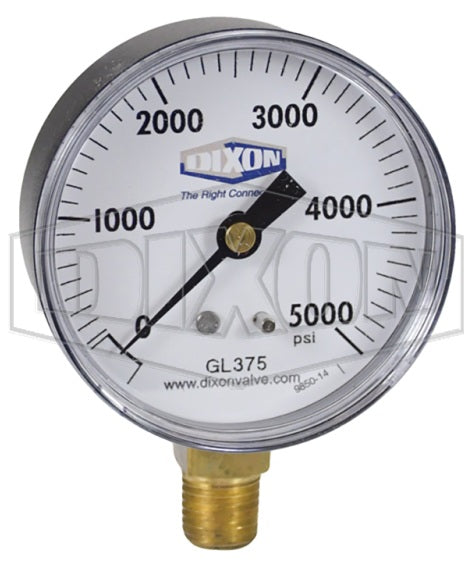

GL375 by Dixon Valve | Standard Dry Gauge | Lower Mount | 2-1/2" Face | 1/4" Lower Mount | 0-5000 PSI Range | ABS Plastic

GL375 by Dixon Valve | Standard Dry Gauge | Lower Mount | 2-1/2" Face | 1/4" Lower Mount | 0-5000 PSI Range | ABS Plastic

Sale price$39.74
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • ASME B40.1, Grade B (± 3-2-3% accuracy).
  • PowerFlex™ movement with polyester segment, designed to resist the effects of shock, vibration, and pulsation.
Materials:
  • Polycarbonate window
  • Black aluminum pointer
  • ABS plastic case, corrosion resistant
  • C-shaped bronze safety Bourdon tube
Specifications:
  • C-shaped bronze safety bourdon tube (600 PSI and lower)
  • Helical wound bronze safety bourdon tube (1000 PSI and higher)
  • Ambient temperature range: -40°F to 150°F (-40°C to 66°C)
Term Meanings:
  • Figure Interval: Figure Interval (Increments between PSI numbers on gauge face).
  • Gradient Interval: Graduation Interval (Fractional increments between PSI numbers on gauge face).
2" Face
1/4" Lower Mount
Part Number		 2-1/2" Face
1/4" Lower Mount
Part Number		 3-1/2" Face
1/4" Lower Mount
Part Number		 PSI Range Figure
Interval		 Minor
Gradient
GL100 GL300 GS15-4 0-15 1 0.5
GL115 GL320 GS30-4 0-30 5 0.5
GL120 GL325 GS60-4 0-60 5 1
GL125 GL330 GS100-4 0-100 10 2
GL130 GL335 GS160-4 0-160 20 5
GL135 GL340 GS200-4 0-200 20 5
GL140 GL345 GS300-4 0-300 30 5
- GL347 GS400-4 0-400 50 10
- GL350 GS600-4 0-600 50 10
- GL355 GS1000-4 0-1000 200 20
- GL360 - 0-1500 300 50
- GL365 - 0-2000 400 50
- GL370 - 0-3000 500 100
- GL375 - 0-5000 1000 100

Additional Product Data:

Series:
  • GL Series
