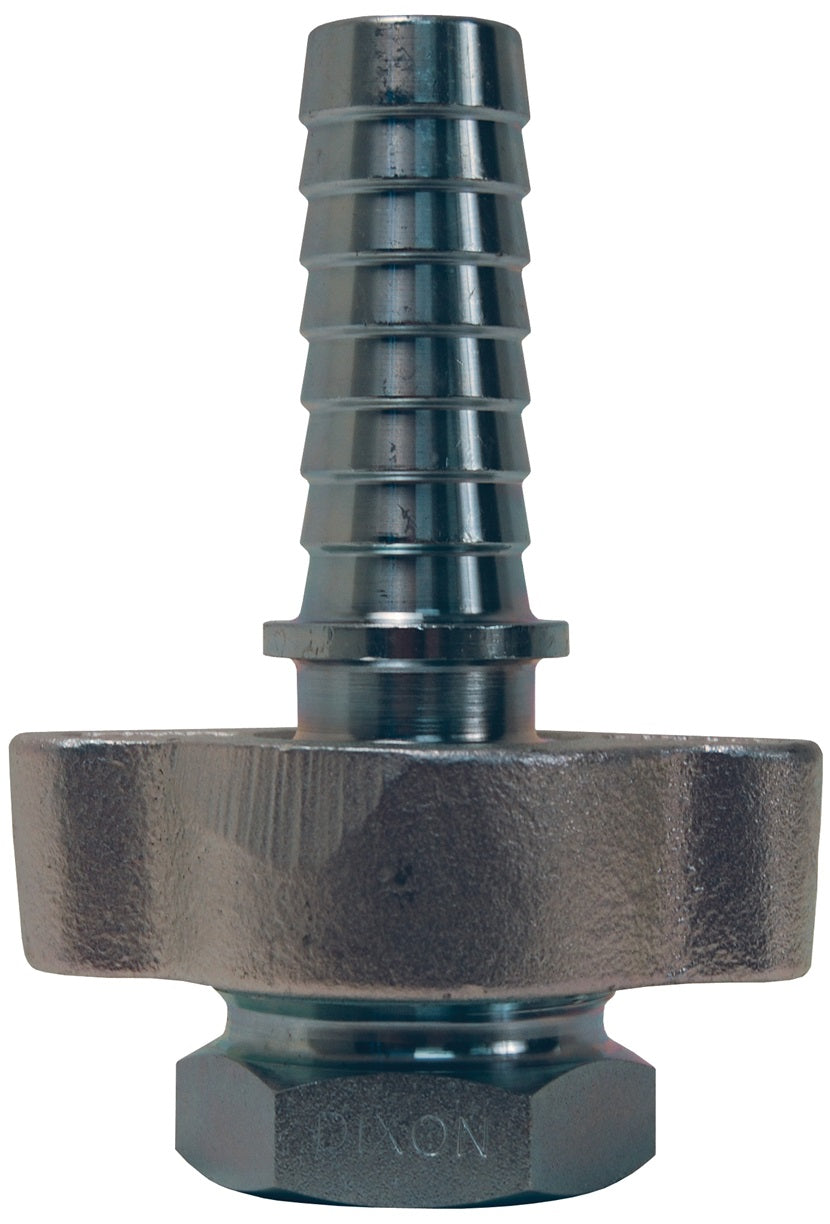

GF96 by Dixon Valve | Boss® Ground Joint Coupling with Female Spud | 2-1/2" Female NPT x Hose Shank | Plated Iron

GF96 by Dixon Valve | Boss® Ground Joint Coupling with Female Spud | 2-1/2" Female NPT x Hose Shank | Plated Iron

Sale price$205.61
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Easy to seal.
  • The spud part of the coupling serves as one half of the connection and is usually fixed to the equipment. The stem part that is clamped to the hose is the other half. The two halves are connected or disconnected by rotating the wing nut on the spud. When connected they achieve both a mechanical, and a pressure seal.
Use:
  • Boss couplings supply a convenient threaded fitting to connect two lengths of hose, or a single length to a male or female threaded outlet.
  • Use with Boss Clamps.
Safety Notes:
  • Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
  • Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
Specifications:
  • Recommended for steam service up to 450°F (232°C).
Plated Steel
and / or
Iron
Part Number		 316 Stainless Steel
Part Number		 Brass
Part Number		 Hose Shank x NPT
GF1* - - 1/4"
GF3* - - 3/8"
GF6 - - 1/2"
GF26-1 - - 1/2" x 3/4"
GF26 RGF26 BGF26 3/4"
GF36 RGF36 BGF36 1"
GF51 RGF51 - 1-1/4"
GF61 RGF61 - 1-1/2"
GF81** RGF81** - 2"
GF96 - - 2-1/2"
GF111 - - 3"
GF141 - - 4"
GF201* - - 6"

* 1/4", 3/8", and 6" available only with copper seat spuds.

** Not to be used with #250, #275, or #306 Boss clamps.

Additional Product Data:

Brand:
  • Boss
Shape:

Straight

Ends Configuration:
  • 2-1/2in Female NPT
  • 2-1/2in Hose Barb

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
