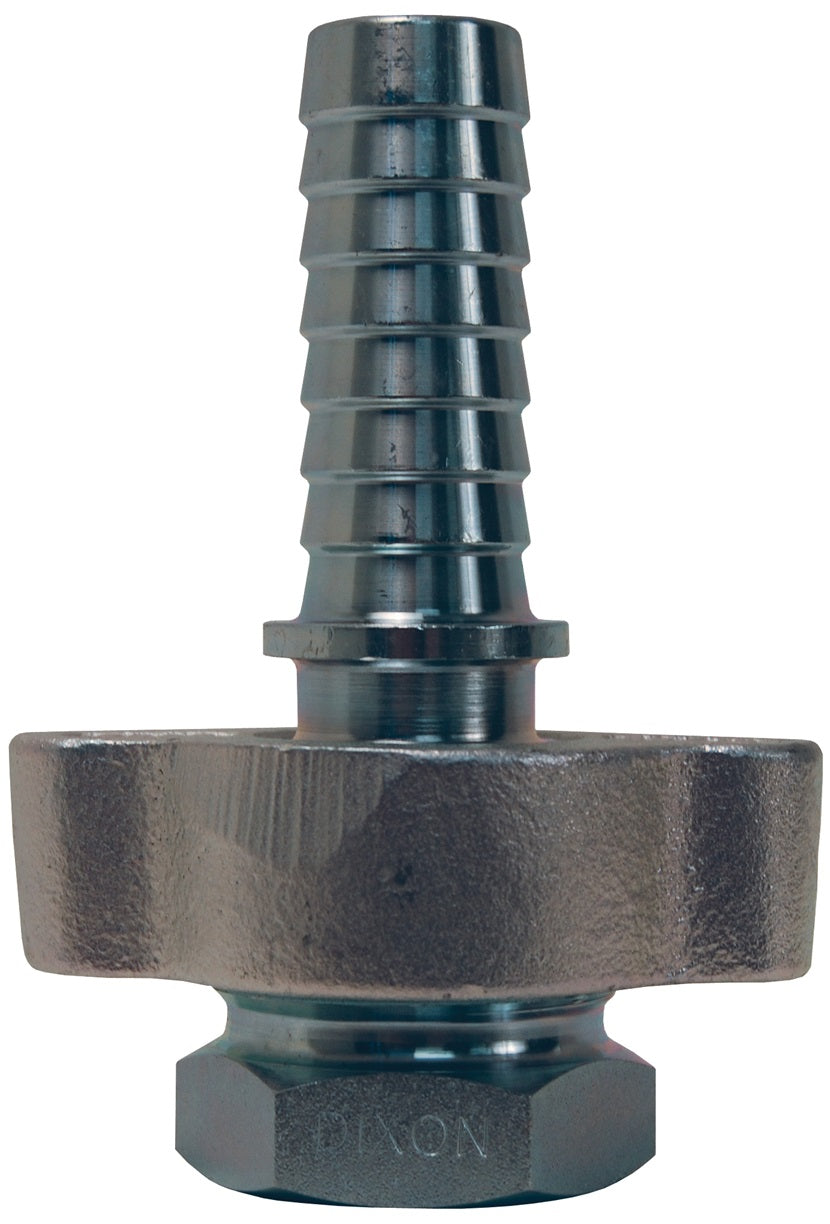

GF36 by Dixon Valve | Boss® Ground Joint Coupling with Female Spud | 1" Female NPT x Hose Shank | Plated Iron/Steel

GF36 by Dixon Valve | Boss® Ground Joint Coupling with Female Spud | 1" Female NPT x Hose Shank | Plated Iron/Steel

Sale price$49.47

Dixon Valve
Boss® | Boss Ground Joint Couplings with Female Spud

Boss couplings are all-purpose hose couplings, universally recommended for steam hose connections. They are also widely used for air, water, fluid petroleum, chemicals and liquid petroleum gas up to 1" ID.

Boss couplings can be applied to many types of rubber, synthetic, plastic, metallic or semi-metallic hose.
Buy More, Save More!
Quantity Price Each
10–39 $46.50
40–79 $42.05
80+ $37.10
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Boss
Shape:

Straight

Ends Configuration:
  • 1in Female NPT
  • 1in Hose Barb
Features:
  • Easy to seal.
  • The spud part of the coupling serves as one half of the connection and is usually fixed to the equipment. The stem part that is clamped to the hose is the other half. The two halves are connected or disconnected by rotating the wing nut on the spud. When connected they achieve both a mechanical, and a pressure seal.
Use:
  • Boss couplings supply a convenient threaded fitting to connect two lengths of hose, or a single length to a male or female threaded outlet.
  • Use with Boss Clamps.
Safety Notes:
  • Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
  • Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
Specifications:
  • Recommended for steam service up to 450°F (232°C).
Plated Steel
and / or
Iron
Part Number		 316 Stainless Steel
Part Number		 Brass
Part Number		 Hose Shank x NPT
GF1* - - 1/4"
GF3* - - 3/8"
GF6 - - 1/2"
GF26-1 - - 1/2" x 3/4"
GF26 RGF26 BGF26 3/4"
GF36 RGF36 BGF36 1"
GF51 RGF51 - 1-1/4"
GF61 RGF61 - 1-1/2"
GF81** RGF81** - 2"
GF96 - - 2-1/2"
GF111 - - 3"
GF141 - - 4"
GF201* - - 6"

* 1/4", 3/8", and 6" available only with copper seat spuds.

** Not to be used with #250, #275, or #306 Boss clamps.
