GC34-8x8 by Couplamatic | A Series Coupling | 1/2" Hose ID x 13/16x16 Thread O-Ring Face Seal | ORF Female Swivel Medium Drop | 90° Elbow

GC34-8x8 by Couplamatic | A Series Coupling | 1/2" Hose ID x 13/16x16 Thread O-Ring Face Seal | ORF Female Swivel Medium Drop | 90° Elbow

Sale price$21.36

Couplamatic Systems Inc.
A Series - O-Ring Face Seal (ORF) - 90° Female Swivel Medium Drop
Buy More, Save More!
Quantity Price Each
10–39 $20.08
40–79 $18.16
80+ $16.02
Discounts applied in cart/checkout.

Product Data:

Series:
  • A Series
Shape:

90 Degree

Ends Configuration:
  • 1/2in Female O-Ring Face Seal
  • 1/2in Hose Barb
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.

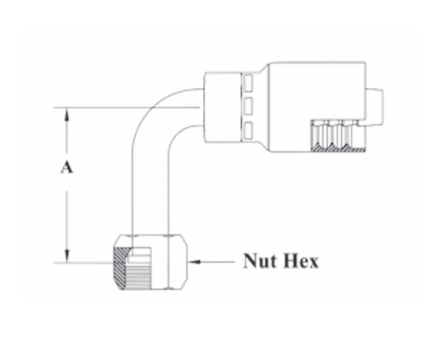

Part Number Hose ID Thread Size Tube OD A - DropInches Nut Hex
GC34-4x4 1/4" 9/16x18 1/4" 1.26" 11/16"
GC34-6x6 3/8" 11/16x16 3/8" 1.51" 13/16"
GC34-8x8 1/2" 13/16x16 1/2" 1.62" 15/16"

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
