GC34-4x4 by Couplamatic | A Series Coupling | 1/4" Hose ID x 9/16x18 Thread O-Ring Face Seal | ORF Female Swivel Medium Drop | 90° Elbow

GC34-4x4 by Couplamatic | A Series Coupling | 1/4" Hose ID x 9/16x18 Thread O-Ring Face Seal | ORF Female Swivel Medium Drop | 90° Elbow

Sale price$15.16
Buy more, save moreDiscounts applied in cart/checkout.
A Series — Bite to the Wire

GC34 A Series — O-Ring Face Seal (ORF), Female Swivel, Medium Drop 90° Elbow

GC34 is the O-Ring Face Seal (ORF), Female Swivel, Medium Drop 90° Elbow configuration of the A Series, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, 2SK, Hy-Plus I and III, 100R16/2SC, CS-Guard R16, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R19 and jack hose.

1

What are the main product features?
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
  • Bite to the wire — the shell grips the hose reinforcement directly for a permanent termination.
  • Widest braid hose coverage — including 100R19 and hydraulic jack hose in male NPTF solid.
2

Which sizes are available?

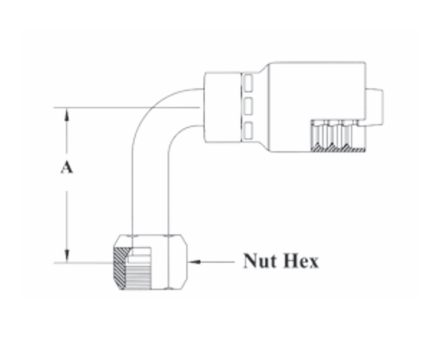

Part Number Hose ID Thread Size Tube OD A - DropInches Nut Hex
GC34-4x4 1/4" 9/16x18 1/4" 1.26" 11/16"
GC34-6x6 3/8" 11/16x16 3/8" 1.51" 13/16"
GC34-8x8 1/2" 13/16x16 1/2" 1.62" 15/16"

Additional Product Data:

Series:
  • A Series
Shape:

90 Degree

Ends Configuration:
  • 1/4in Female O-Ring Face Seal
  • 1/4in Hose Barb

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
