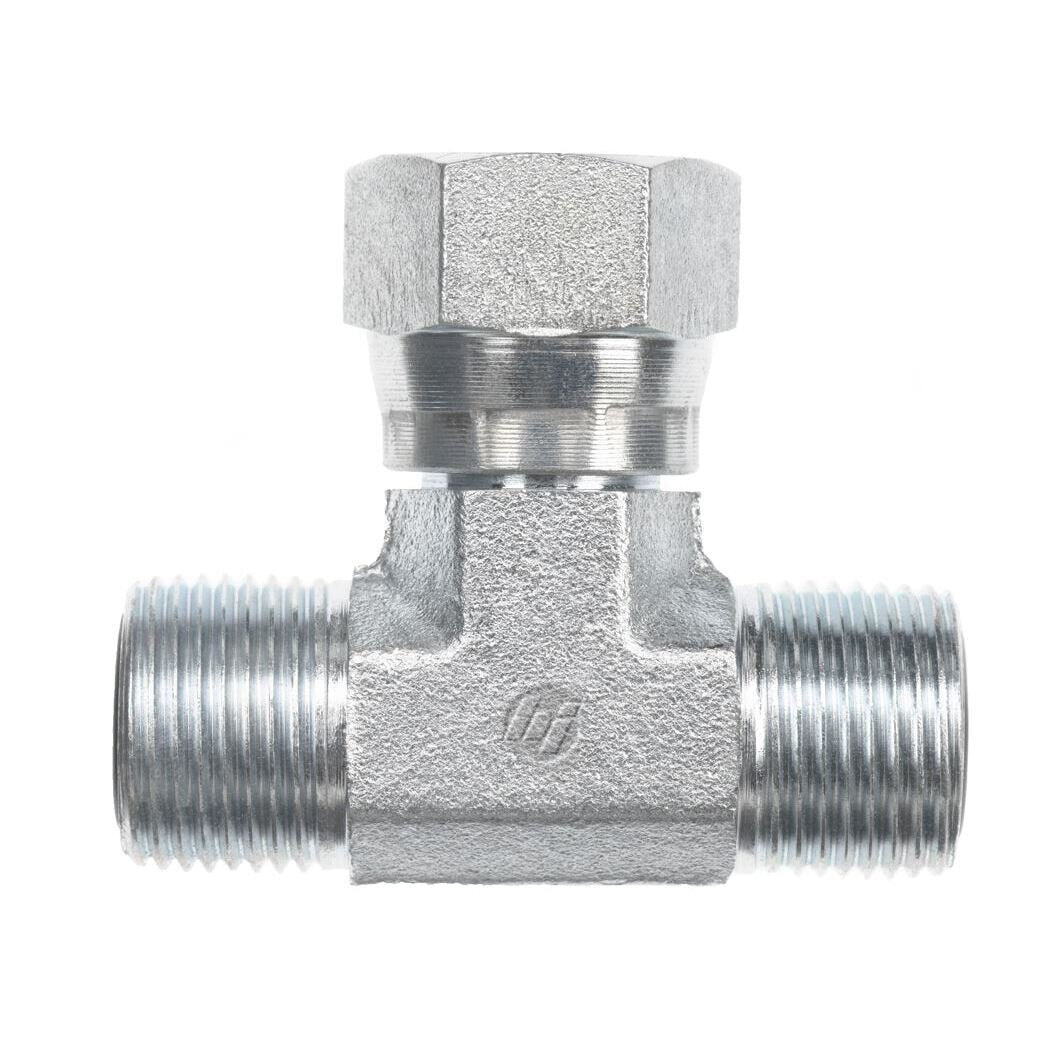

FS6600-04-04-04-FG by Brennan Inc. | -04 Male Face Seal x -04 Male Face Seal x -04 Female Face Seal Swivel Branch | Tee | Forged Steel

FS6600-04-04-04-FG by Brennan Inc. | -04 Male Face Seal x -04 Male Face Seal x -04 Female Face Seal Swivel Branch | Tee | Forged Steel

Sale price$12.61

Brennan Inc.
O-Ring Face Seal Fittings: FS6600 - Male Face Seal x Male Face Seal x Female Face Seal Swivel Branch Tee
Buy More, Save More!
Quantity Price Each
10–39 $11.85
40–79 $10.72
80+ $9.46
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 1/4in Male O-Ring Face Seal
  • 1/4in Male O-Ring Face Seal
  • 1/4in Female O-Ring Face Seal
  • Some Ends Match
Material(s):
  • Steel
Part Number Material TubeO.D A1Thread A2Thread BThread A1Drill A2Drill BDrill M1Length M2Length AAALength CHex JJFlats
FS6600-04-04-04-FG Steel 1/4" 9/16-18" 9/16-18" 9/16-18" 0.172" 0.172" 0.165" 0.850" 0.850" 1.040" 0.687" 0.562"
FS6600-06-06-06-FG Steel 3/8" 11/16-16" 11/16-16" 11/16-16" 0.264" 0.264" 0.264" 0.980" 0.980" 1.150" 0.812" 0.750"
FS6600-08-08-08-FG Steel 1/2" 13/16-16" 13/16-16" 13/16-16" 0.378" 0.378" 0.358" 1.100" 1.100" 1.490" 0.938" 0.750"
FS6600-10-10-10-FG Steel 5/8" 1-14" 1-14" 1-14" 0.484" 0.484" 0.453" 1.310" 1.310" 1.620" 1.125" 1.062"
FS6600-12-12-12-FG Steel 3/4" 1-3/16-12" 1-3/16-12" 1-3/16-12" 0.609" 0.609" 0.547" 1.470" 1.470" 1.820" 1.375" 1.188"
FS6600-16-16-16-FG Steel 1" 1-7/16-12" 1-7/16-12" 1-7/16-12" 0.811" 0.811" 0.783" 1.640" 1.640" 2.100" 1.625" 1.438"
FS6600-20-20-20-FG Steel 1-1/4" 1-11/16-12" 1-11/16-12" 1-11/16-12" 1.024" 1.024" 1.024" 1.760" 1.760" 2.290" 1.875" 1.625"

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
