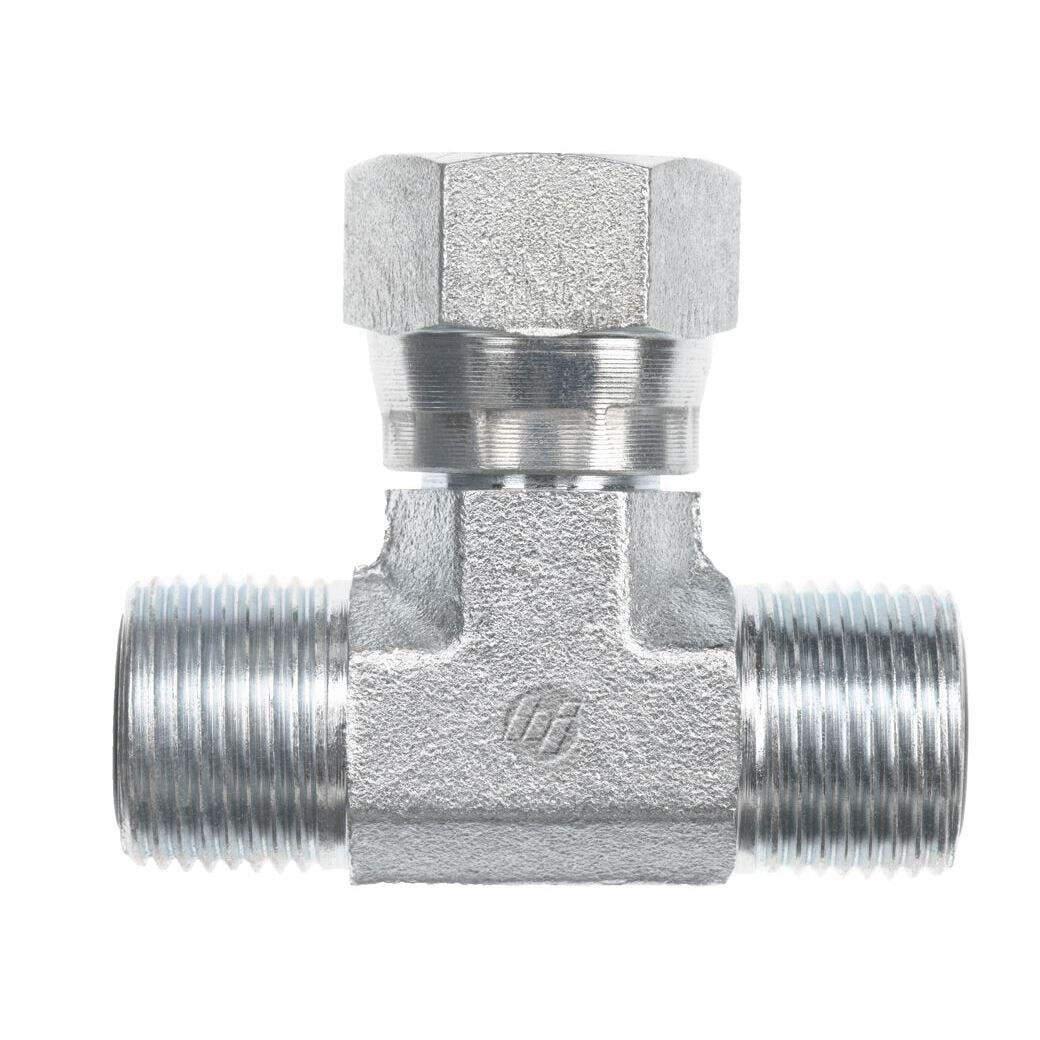

FS6600-12-12-12-FG by Brennan Inc. | -12 Male Face Seal x -12 Male Face Seal x -12 Female Face Seal Swivel Branch | Tee | Forged Steel
Brennan Inc.
O-Ring Face Seal Fittings: FS6600 - Male Face Seal x Male Face Seal x Female Face Seal Swivel Branch Tee
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $33.05 |
| 40–79 | $29.89 |
| 80+ | $26.37 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Tee
Ends Configuration:
Material(s):
Special Properties:
 |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | TubeO.D | A1Thread | A2Thread | BThread | A1Drill | A2Drill | BDrill | M1Length | M2Length | AAALength | CHex | JJFlats |
| FS6600-04-04-04-FG | Steel | 1/4" | 9/16-18" | 9/16-18" | 9/16-18" | 0.172" | 0.172" | 0.165" | 0.850" | 0.850" | 1.040" | 0.687" | 0.562" |
| FS6600-06-06-06-FG | Steel | 3/8" | 11/16-16" | 11/16-16" | 11/16-16" | 0.264" | 0.264" | 0.264" | 0.980" | 0.980" | 1.150" | 0.812" | 0.750" |
| FS6600-08-08-08-FG | Steel | 1/2" | 13/16-16" | 13/16-16" | 13/16-16" | 0.378" | 0.378" | 0.358" | 1.100" | 1.100" | 1.490" | 0.938" | 0.750" |
| FS6600-10-10-10-FG | Steel | 5/8" | 1-14" | 1-14" | 1-14" | 0.484" | 0.484" | 0.453" | 1.310" | 1.310" | 1.620" | 1.125" | 1.062" |
| FS6600-12-12-12-FG | Steel | 3/4" | 1-3/16-12" | 1-3/16-12" | 1-3/16-12" | 0.609" | 0.609" | 0.547" | 1.470" | 1.470" | 1.820" | 1.375" | 1.188" |
| FS6600-16-16-16-FG | Steel | 1" | 1-7/16-12" | 1-7/16-12" | 1-7/16-12" | 0.811" | 0.811" | 0.783" | 1.640" | 1.640" | 2.100" | 1.625" | 1.438" |
| FS6600-20-20-20-FG | Steel | 1-1/4" | 1-11/16-12" | 1-11/16-12" | 1-11/16-12" | 1.024" | 1.024" | 1.024" | 1.760" | 1.760" | 2.290" | 1.875" | 1.625" |
