FJX90-32-32-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female JIC | 90° Elbow | Swivel | for 2" Hose ID
by Kurt Hydraulics
FJX90-JJ - 37 deg. JIC Female 90 deg. Bent Tube Swivel - Ultra High Pressure Skive Style
Kurt Fittings and Hose should only be used together.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $239.78 |
| 15–29 | $216.82 |
| 30+ | $191.31 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Special Properties:

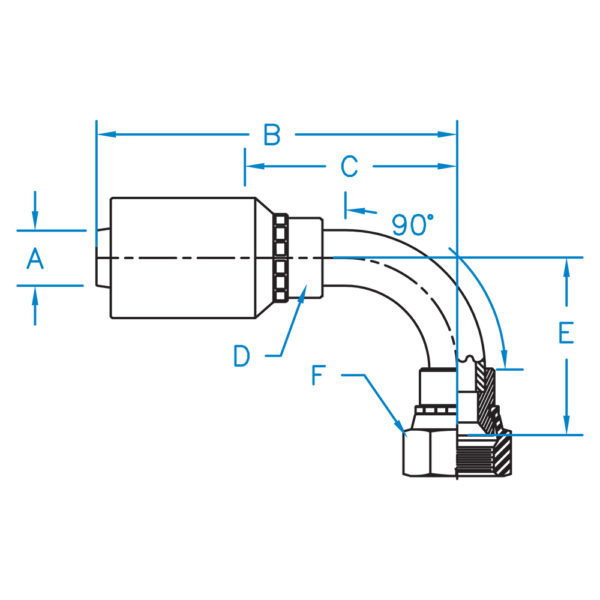

| Part Number | A | B | C | D | E | F |
Hose ID (In) |
Thread |
|---|---|---|---|---|---|---|---|---|
| FJX90-20-20-JJ | 1.250 | 6.570 | 3.940 | 1-3/4R | 3.078 | 2.000 | 1-1/4" | 1-5/8 - 12 |
| FJX90-24-24-JJ | 1.500 | 6.333 | 3.623 | 2-1/8R | 3.790 | 2-1/4 | 1-1/2" | 1-7/8 - 12 |
| FJX90-32-32-JJ | 2.000 | 8.860 | 5.090 | 2-3/4R | 4.800 | 2-7/8 | 2.000" | 2-1/2 - 12 |
