FJX90-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female JIC | 90° Elbow | Swivel | for 1-1/2" Hose ID

FJX90-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female JIC | 90° Elbow | Swivel | for 1-1/2" Hose ID

Sale price$150.43

by Kurt Hydraulics
FJX90-JJ - 37 deg. JIC Female 90 deg. Bent Tube Swivel - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
5–19 $141.40
20–59 $127.87
60+ $112.82
Discounts applied in cart/checkout.

Product Data:

Series:
  • FJX90 Series
Shape:

90 Degree

Ends Configuration:
  • 1-1/2in Hose Barb
  • 1-1/2in Female JIC

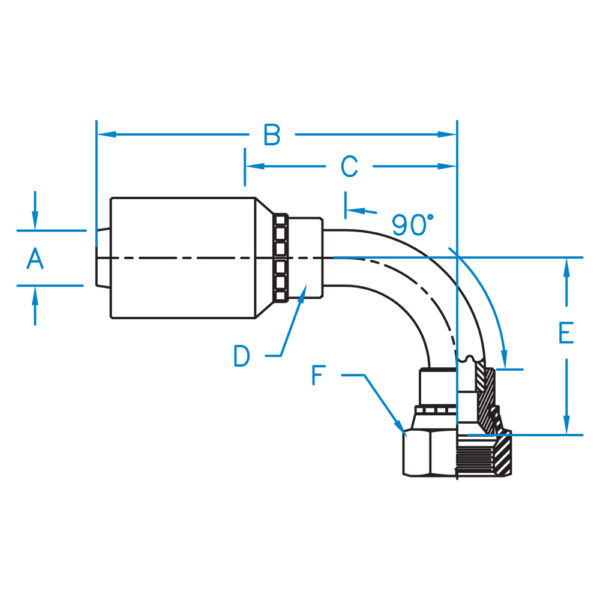

Part Number A B C D E F Hose ID
(In)		 Thread
FJX90-20-20-JJ 1.250 6.570 3.940 1-3/4R 3.078 2.000 1-1/4" 1-5/8 - 12
FJX90-24-24-JJ 1.500 6.333 3.623 2-1/8R 3.790 2-1/4 1-1/2" 1-7/8 - 12
FJX90-32-32-JJ 2.000 8.860 5.090 2-3/4R 4.800 2-7/8 2.000" 2-1/2 - 12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
