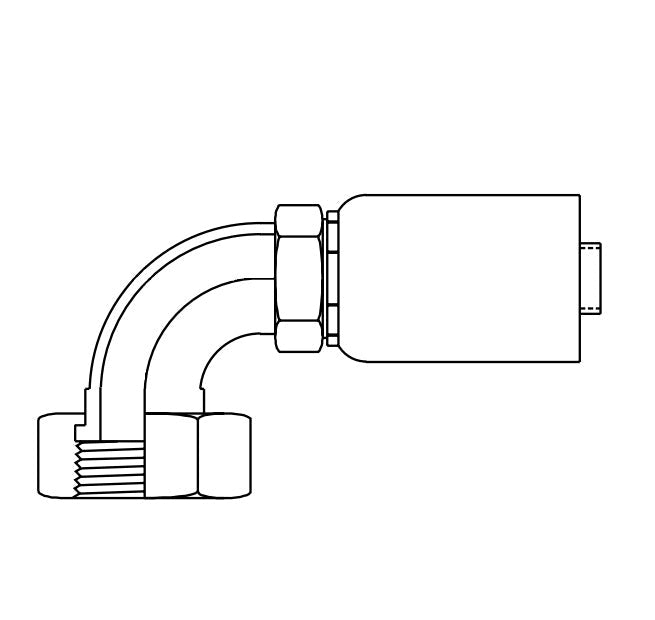

FJ9482-0808S Synflex by Danfoss | Polyon Swage Hose Fitting | Short Drop 90° Elbow | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Carbon Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
 |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Carbon Steel Part Number |
Terminal End | Thread | Hose Size | A | Cut Off Factor D |
EØ | H | Hex 1 | Hex 2 | |||||
| Dash Size | DN | Dash Size | mm | in | mm | in | mm | in | mm | in | in | in | ||
| FJ9482-0404S | -04 | 9/16-18 | 6 | -04 | 54,6mm | 2.15" | 31,8mm | 1.25" | 3,8mm | 0.15" | 20,8mm | 0.82" | 0.69" | 0.62" |
| FJ9482-0606S | -06 | 11/16-16 | 10 | -06 | 68,1mm | 2.68" | 31,5mm | 1.24" | 6,1mm | 0.24" | 22,9mm | 0.90" | 0.81" | 0.75" |
| FJ9482-0808S | -08 | 13/16-16 | 12 | -08 | 78,7mm | 3.10" | 37,1mm | 1.46" | 9,4mm | 0.37" | 29,2mm | 1.15" | 0.94" | 0.88" |
Additional Product Data:
Brand:
Shape:
90 Degree
Ends Configuration:
Material(s):
Specifications and Approvals:
Compatible Series:
